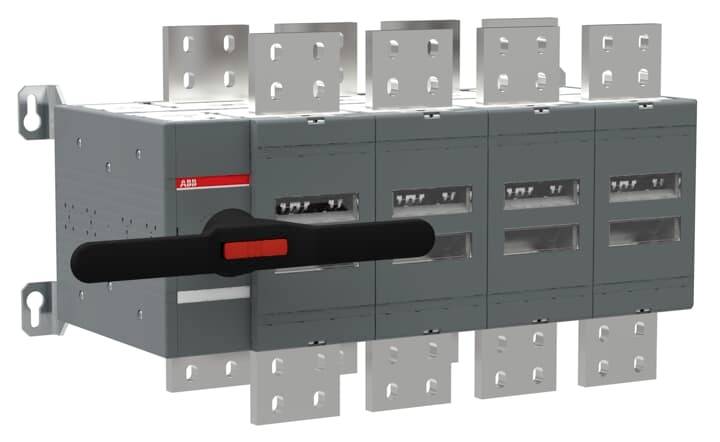

ABB 1SCA129158R1001 OT3200E04CP Changeover 1000 V
EAN:
Part number:
Item no:
Product type
Changeover
Number of pins
4
Type
Main switch, service/repair switch
Dim
(W x H x D) 730 x 410 x 325 mm
Content
1 pc(s)
Technical specifications
- Type
Main switch, service/repair switch
- Product type
Changeover
- Number of pins
4
- Dim
(W x H x D) 730 x 410 x 325 mm
- Content
1 pc(s)
- Nominal voltage
1000 V
- Width
730 mm
- Height
410 mm
- Depth
325 mm
- Switch/button features
for front mounting
for distributors
lockable
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3783825 ABB 1SCA129158R1001 OT3200E04CP Changeover 1000 V
Description
The series of manually operated load switches from ABB is an optimum solution for many applications. The load change-over switch switches switch currents from 16 A to 3200 A and over at voltages up to 690 V AC. Despite high performance the switches ensure a safe operation through a variety of integrated fuse functions. Through the compact design the series enables an optimum use of space. The ABB load switches are available in two different versions. They differ in the type of switchover: Open switching (I-0-II) and closed switching (I-I+II-II). In addition, the change-over switches have IEC and UL approvals. ABB offer a wide range of accessories for these switches, such as extension shafts, handles, auxiliary switches and terminal covers. As such, the load change-over switch can be used in the most demanding applications.
