ABB 1SVR320661R1000 SMPSU 24 V DC 15 A 240 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

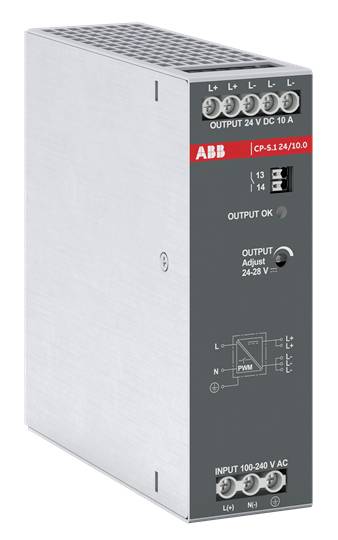

CP-S.1 24/10.0 Power supply In:100-240VAC/90-250VDC Out:DC 24V/10A
- Output 24 V DC / 15 A
- Power 240 W
- Screws
Technical specifications
- Product type
SMPSU
- Input voltage (max.)
85 V AC
- Max. output current
15 A
- Output current (max.) - rounded
15 A
- Min. input voltage
264 V AC
- Dim
(L x W x H) 127 x 40 x 129.4 mm
- Output voltage (max.)
24 V DC
- Connection
Screws
240 W
IP20
- Type
closed
- Width
40 mm
- Height
129.4 mm
- Length
127 mm
- Type
CP-S.1 24/10.0
40 mm
129.4 mm
127 mm
129.4 mm
258 VA
40 mm
FALSE
FALSE
AC/DC
240 W
TRUE
Screw connection
TRUE
FALSE
TRUE
IP20
FALSE
24-24 V
0-0 V
0-0 V
FALSE
85-264 V
85-264 V
90-277 V
TRUE
None
15 A
0 A
0 A
24 V
0 V
0 V
10 A
0 A
0 A
None
1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3102873 ABB 1SVR320661R1000 SMPSU 24 V DC 15 A 240 W
User & Safety Instructions
User & Safety Instructions 3102873 ABB 1SVR320661R1000 SMPSU 24 V DC 15 A 240 W
Description
CP-S.1-power supplies: High efficiency and reliability in a compact design The series was developed for a wide range of applications, including mechanical engineering. The series has an integrated power reserve of 150% for five seconds and works with an efficiency of up to 94%. The new CP-S.1 power supplies offer thermal protection and active power factor correction, a wide certified AC and DC input range and comprehensive worldwide approvals, including marine. They are the preferred choice for a variety of industrial applications. The CP-S.1 power supplies have overheating protection and active power factor correction, a wide certified AC and DC input range and extensive worldwide approvals, including marine. They are the preferred choice for a variety of industrial applications.
