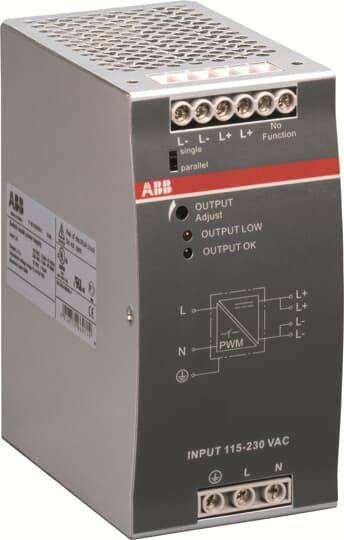

ABB 1SVR427035R1000 Power supply unit 12 V DC 10 A 120 W No. of outputs:1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Nominal input voltage
110 - 230 V/AC
- Product type
Power supply unit
- Min. input voltage
90 V
- Input voltage
210 V
- Max. output current
10 A
- Output current (max.) - rounded
10 A
120 W
- Output type (power supply units)
Fixed voltage
- Output voltage (nominal)
12 V DC
- No. of outputs
1 x
- Dim
(L x W x H) 123.6 x 63.2 x 123.6 mm
- Weight
0
- Manufacturer part #
1SVR427035R1000
- Content
1 pc(s)
- Width
63.2 mm
- Height
123.6 mm
- Length
123.6 mm
IP20
- Type
CP-E 12/10.0
- Efficiency
90 %
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2322297 ABB 1SVR427035R1000 Power supply unit 12 V DC 10 A 120 W No. of outputs:1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2322297 ABB 1SVR427035R1000 Power supply unit 12 V DC 10 A 120 W No. of outputs:1 x Content 1 pc(s)
Description
The CP-E series includes models with output voltages of 5 V DC and 48 V DC with an output current of 0.625 A to 20 A. Thanks to the high thermal efficiency of up to 90% and the associated very low power loss and very low heating, the devices can be operated without forced cooling. The functionality has been extended, while at the same time the number of different models has been significantly reduced. Of course, the power supplies of the CP-E series are approved in accordance with all applicable international standards.
