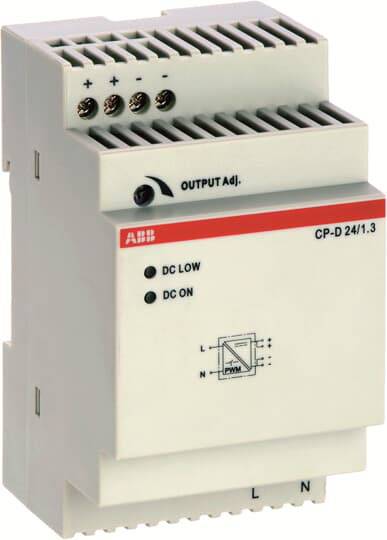

ABB 1SVR427043R0100 Rail mounted PSU (DIN) 24 V DC 1.3 A Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
CP-D 24/1.3 power supply in: 100-240VAC Out: 24VDC/1.3A
Technical specifications
- Type
Power supply unit
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
100 V
- Output voltage
24 V DC
- Input voltage
100 - 240 V AC
- Input voltage (max.)
240 V
- Max. output current
1.3 A
- Output current (max.) - rounded
1.3 A
- Output voltage (nominal)
24 V DC
- Dim
(L x W x H) 91 x 53 x 57.5 mm
- Weight
0
- Manufacturer part #
1SVR427043R0100
- Content
1 pc(s)
- Width
53 mm
- Height
57.5 mm
- Length
91 mm
- Type
CP-D 24/1.3
53
91 mm
57.5 mm
91 mm
38.2 W
53 mm
TRUE
FALSE
3
AC/DC
Screw connection
TRUE
IP20
None
None
1
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2319212 ABB 1SVR427043R0100 Rail mounted PSU (DIN) 24 V DC 1.3 A Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2319212 ABB 1SVR427043R0100 Rail mounted PSU (DIN) 24 V DC 1.3 A Content 1 pc(s)
Description
The modular power supplies in MDRC design of the CP-D series (modular DIN rail components) can be optimally installed in distributors. This series includes devices with output voltages of 12 V DC and 24 V DC with an output current of 0.42 A to 4.2 A. Thanks to the high thermal efficiency and the associated low power loss and low heating, the devices can be operated without forced cooling. All devices have a U/I output characteristic (fold-forward behavior). The power supplies of the CP-D series are approved according to all applicable international standards.
