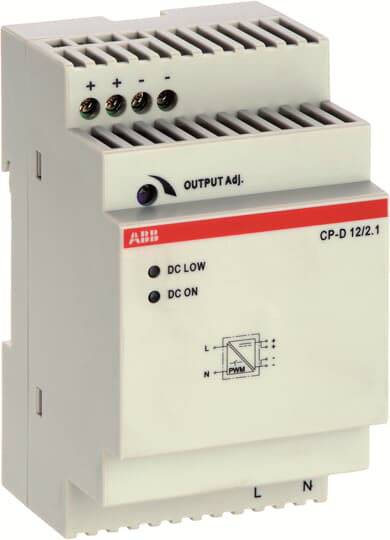

ABB 1SVR427043R1200 Rail mounted PSU (DIN) 2.10 A Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
100 V
- Inputs
1
- Input voltage (max.)
240 V
- Max. output current
2.10 A
- Output current (max.) - rounded
2.1 A
- Dim
(W x H) 53 mm x 91 mm
- Weight
0
- Output voltage (max.)
12 V DC
- Manufacturer part #
1SVR427043R1200
- Content
1 pc(s)
- Width
53 mm
- Height
91 mm
- Type
CP-D 12/2.1
53
91 mm
57.5 mm
91 mm
31.2 W
53 mm
TRUE
FALSE
3
AC/DC
Screw connection
TRUE
IP20
None
None
1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2321658 ABB 1SVR427043R1200 Rail mounted PSU (DIN) 2.10 A Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2321658 ABB 1SVR427043R1200 Rail mounted PSU (DIN) 2.10 A Content 1 pc(s)
Description
The modular power supplies in MDRC design of the CP-D series (modular DIN rail components) can be optimally installed in distributors. This series includes devices with output voltages of 12 V DC and 24 V DC with an output current of 0.42 A to 4.2 A. Thanks to the high thermal efficiency and the associated low power loss and low heating, the devices can be operated without forced cooling. All devices have a U/I output characteristic (fold-forward behavior). The power supplies of the CP-D series are approved according to all applicable international standards.
