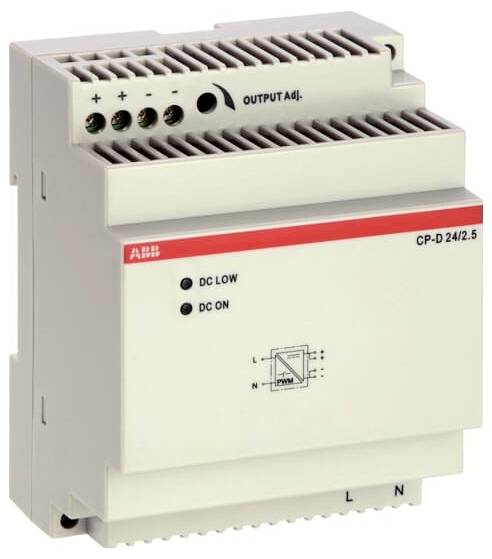

ABB 1SVR427044R0200 Rail mounted PSU (DIN) 24 V 2.5 A 60 W No. of outputs:1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Type
Output voltage regulated
- Nominal input voltage
120 - 375 V/DC
- Type
short circuit resistant
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
90 V AC
120 V DC
- Input voltage
90 V/AC - 264 V/AC; 120 V/DC - 375 V DC
- Input voltage (max.)
264 V AC
375 V DC
- Max. output current
2.5 A
- Output current (max.) - rounded
2.5 A
60 W
- Output type (power supply units)
Fixed voltage
- Output voltage (nominal)
24 V
- No. of outputs
1 x
- Connection
Screws
- Dim
(L x W x H) 57.5 x 71 x 91 mm
- Weight
0.252 kg
- Output voltage (max.)
24 V DC
- Output voltage (min.)
24 V DC
- Manufacturer part #
1SVR427044R0200
- Content
1 pc(s)
- PSU features
Regulated
- Width
71 mm
- Height
91 mm
- Length
57.5 mm
IP20
- Type
CP-D 24/2.5
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3783731 ABB 1SVR427044R0200 Rail mounted PSU (DIN) 24 V 2.5 A 60 W No. of outputs:1 x Content 1 pc(s)
Description
The modular power supplies in MDRC design of the series CP-D (modular DIN rail components) can be installed optimally in distributors. This series includes devices with output voltages of 12 V DC and 24 V DC at an output current of 0.42 A to 4.2 A. Thanks to the high thermal efficiency and the associated low power loss and low heating, the devices can be operated without forced cooling. All devices have a V/I output characteristic (fold-forward behavior). The power supplies of the series CP-D are approved in accordance with all the valid international standards.
