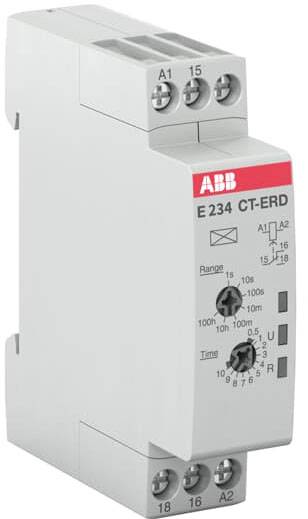

ABB 1SVR500100R0000 CT-ERD.12 TDR Multifunction 250 V DC/AC 1 pc(s) Time range: 0.05 - 360000 s 2 change-overs
EAN:
Part number:
Item no:
Product type
TDR
Type
Multifunction
Functions
On-delay
Operating voltage
250 V DC/AC
Max. operating voltage
24 V
Datasheet (PDF)
Technical specifications
- Product type
TDR
- Type
CT-ERD.12
- Type
Multifunction
- Connection
Screws
- Functions
On-delay
- Operating voltage
250 V DC/AC
- Max. operating voltage
24 V
- Operating voltage
24 V (max)
- Contact type
2 change-overs
- Time range (min.)
0.05 s
- Time range (max.)
360000 s
- Width
17.5 mm
- Height
70 mm
- Depth
63 mm
- Dim
(W x H x D) 17.5 x 70 x 63 mm
- Content
1 pc(s)
6 A
17.5
70 mm
64 mm
Screw connection
24-240 V
24-240 V
24-48 V
AC/DC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2324788 ABB 1SVR500100R0000 CT-ERD.12 TDR Multifunction 250 V DC/AC 1 pc(s) Time range: 0.05 - 360000 s 2 change-overs
User & Safety Instructions
User & Safety Instructions 2324788 ABB 1SVR500100R0000 CT-ERD.12 TDR Multifunction 250 V DC/AC 1 pc(s) Time range: 0.05 - 360000 s 2 change-overs
Description
The CT-D series time relays in MDRC design are housed in a housing that is only 17.5 mm wide and fits in all common installation and distribution cabinets. The CT-D series is the link between industrial and installation design. For maximum flexibility in use, 10 single and 2 multi-functional devices with 7 time functions are available. The devices have 4 or 7 time ranges, which can be set from 0.05 seconds to 100 hours. Their wide voltage input enables a worldwide use.
