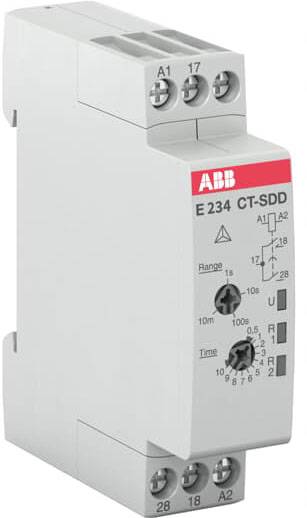

ABB 1SVR500211R0100 CT-SDD.22 TDR Multifunction 1 pc(s) Time range: 0.05 s - 100 h 1 maker, 2 makers Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
TDR
Type
Multifunction
Max. operating voltage
24 V
Contact type
1 maker
2 makers
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
TDR
- Type
CT-SDD.22
- Type
Multifunction
- Connection
Screws
- Max. operating voltage
24 V
- Operating voltage
24 V (max)
- Contact type
1 maker
2 makers
- Time range (min.)
0.05 s
- Time range (max.)
100 h
- Width
17.5 mm
- Height
80 mm
- Depth
63 mm
- Dim
(W x H x D) 17.5 x 80 x 63 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2326847 ABB 1SVR500211R0100 CT-SDD.22 TDR Multifunction 1 pc(s) Time range: 0.05 s - 100 h 1 maker, 2 makers Piece
User & Safety Instructions
User & Safety Instructions 2326847 ABB 1SVR500211R0100 CT-SDD.22 TDR Multifunction 1 pc(s) Time range: 0.05 s - 100 h 1 maker, 2 makers Piece
Description
The CT-D series time relays in MDRC design are housed in a housing that is only 17.5 mm wide and fits in all common installation and distribution cabinets. The CT-D series is the link between industrial and installation design. For maximum flexibility in use, 10 single and 2 multi-functional devices with 7 time functions are available. The devices have 4 or 7 time ranges, which can be set from 0.05 seconds to 100 hours. Their wide voltage input enables a worldwide use.
