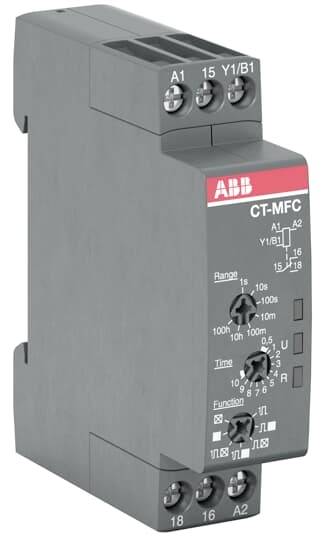

ABB 1SVR508020R0000 CT-MFC.12 TDR Multifunction 1 pc(s) Time range: 0.05 - 360000 s
EAN:
Part number:
Item no:
Product type
TDR
Type
Multifunction
Min. operating voltage
24 V DC/AC
Max. operating voltage
240 V AC
48 V DC
Type
CT-MFC.12
Datasheet (PDF)
Technical specifications
- Product type
TDR
- Type
CT-MFC.12
- Type
Multifunction
- Connection
Screws
- Min. operating voltage
24 V DC/AC
- Max. operating voltage
240 V AC
48 V DC
- Operating voltage
24 - 240, 48 V AC, V DC
- Switching current (max.)
4 A
- Time range (min.)
0.05 s
- Time range (max.)
360000 s
- Width
70 mm
- Height
17.5 mm
- Depth
63 mm
- Dim
(W x H x D) 70 x 17.5 x 63 mm
- Content
1 pc(s)
4 A
17.5 mm
70 mm
63 mm
FALSE
FALSE
FALSE
FALSE
TRUE
TRUE
FALSE
FALSE
FALSE
TRUE
TRUE
FALSE
0.05-360000 s
TRUE
TRUE
TRUE
Screw connection
24-240 V
24-240 V
24-48 V
0
0
1
0
0
1
FALSE
FALSE
TRUE
AC/DC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3111425 ABB 1SVR508020R0000 CT-MFC.12 TDR Multifunction 1 pc(s) Time range: 0.05 - 360000 s
User & Safety Instructions
User & Safety Instructions 3111425 ABB 1SVR508020R0000 CT-MFC.12 TDR Multifunction 1 pc(s) Time range: 0.05 - 360000 s
Description
The time relays of the series CT-C combine high quality and excellent performance with low costs. All important time functions are offered here in the space-saving 17.5mm width. The series consists of 11 single or multi-functional devices with a time range from 0.05 s to 100 h. Their wide-voltage input enables a worldwide, flexible use.
