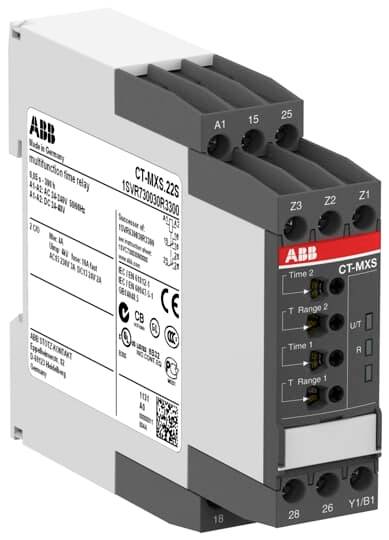

ABB 1SVR730030R3300 CT-MXS.22S TDR Multifunction 1 pc(s) Time range: 0.05 - 1080000 s 2 change-overs Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
TDR
Type
Multifunction
Functions
Single-shot leading-edge
Min. operating voltage
24 V DC/AC
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
TDR
- Type
CT-MXS.22S
- Type
Multifunction
- Connection
Screws
- Functions
Single-shot leading-edge
- Min. operating voltage
24 V DC/AC
- Max. operating voltage
240 V AC
48 V DC
- Operating voltage
24 - 240, 48 V AC, V DC
- Contact type
2 change-overs
- Switching voltage (max.)
250 V DC/AC
- Switching current (max.)
4 A
- Time range (min.)
0.05 s
- Time range (max.)
1080000 s
- Time range(s)
100 h
- Min. temperature
-40 °C
- Max. temperature
+60 °C
- Length
103.7 mm
- Width
85.6 mm
- Height
22.5 mm
- Depth
103.7 mm
- Dim
(L x W x H) 103.7 x 85.6 x 22.5 mm
- Content
1 pc(s)
- Weight
0.14
4 A
22.5
78 mm
102 mm
FALSE
FALSE
TRUE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
TRUE
FALSE
0.05-1080000 s
FALSE
FALSE
FALSE
Screw connection
24-240 V
24-240 V
24-48 V
0
0
2
0
0
2
FALSE
FALSE
TRUE
AC/DC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3103969 ABB 1SVR730030R3300 CT-MXS.22S TDR Multifunction 1 pc(s) Time range: 0.05 - 1080000 s 2 change-overs Piece
User & Safety Instructions
User & Safety Instructions 3103969 ABB 1SVR730030R3300 CT-MXS.22S TDR Multifunction 1 pc(s) Time range: 0.05 - 1080000 s 2 change-overs Piece
Description
The CT-S series is the most economical and universal time relay series of ABB. The range includes 16 multi-function and 26 single-function devices with up to 11 functions, which enable a high degree of flexibility in use. The devices have 7 or 10 time ranges, which can be set from 0.05 seconds to 300 hours. In addition, with selected devices an extended temperature range of -40 °C to +60 °C is possible.
