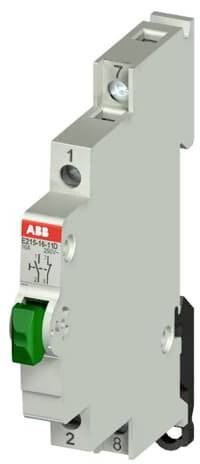

ABB 2CCA703152R0001 E215-16-11D Pushbutton momentary Green IP20 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Pushbutton
Lighting type
None
Contact type
1 maker
1 breaker
Width
9 mm
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Pushbutton
- Switch/button features
+ contact
- Casing/button colour
Green
- Functions
momentary
- Lighting type
None
- Colour
Green
- Bulb type
LED (monochrome)
- Contact type
1 maker
1 breaker
- Width
9 mm
- Recess length
68 mm
- Recess depth
68 mm
IP20
- Content
1 pc(s)
- Switching current (inductive)
16 A
- Type
E215-16-11D
AC
FALSE
75 mm
0.5
IP20
1
1
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2331942 ABB 2CCA703152R0001 E215-16-11D Pushbutton momentary Green IP20 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2331942 ABB 2CCA703152R0001 E215-16-11D Pushbutton momentary Green IP20 1 pc(s) Piece
Description
Pushbuttons are always equipped with a normally open and normally closed contact. The different colours of the buttons (6 colours) are according to the DIN60204-1 standards (colour coding control panel and its importance). The buttons are suitable for the transmission of impulse control commands in almost every electrical system. It can also be used to operate light groups by means of pulse commands, e.g. at a step switch, directly on site from the sub-distributor or distribution cabinet.The module width is always 9 mm (0.5 TE).
This text is machine translated.
This text is machine translated.
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
