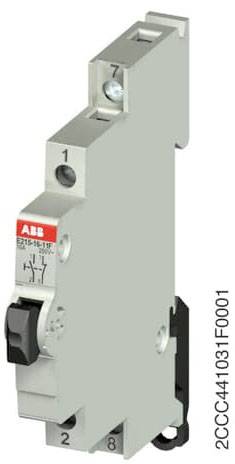

ABB 2CCA703154R0001 E215-16-11F Pushbutton (L x W x H) 150 cm x 50 mm x 100 mm IP20 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Pushbutton
Lighting type
None
Contact type
1 breaker
1 maker
Width
50 mm
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Pushbutton
- Casing/button colour
Grey
- Lighting type
None
- Bulb type
LED (monochrome)
- Contact type
1 breaker
1 maker
- Max. switching capacity
0.72 W
- Length
150 cm
- Width
50 mm
- Height
100 mm
- Recess depth
75 mm
IP20
- Content
1 pc(s)
- Dim
(L x W x H) 150 cm x 50 mm x 100 mm
- Switching current (inductive)
16 A
- Type
E215-16-11F
AC
FALSE
75 mm
0.5
IP20
1
1
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2331521 ABB 2CCA703154R0001 E215-16-11F Pushbutton (L x W x H) 150 cm x 50 mm x 100 mm IP20 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2331521 ABB 2CCA703154R0001 E215-16-11F Pushbutton (L x W x H) 150 cm x 50 mm x 100 mm IP20 1 pc(s) Piece
Description
Pushbuttons are always equipped with a normally open and normally closed contact. The different colours of the buttons (6 colours) are according to the DIN60204-1 standards (colour coding control panel and its importance). The buttons are suitable for the transmission of impulse control commands in almost every electrical system. It can also be used to operate light groups by means of pulse commands, e.g. at a step switch, directly on site from the sub-distributor or distribution cabinet.The module width is always 9 mm (0.5 TE).
This text is machine translated.
This text is machine translated.
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
