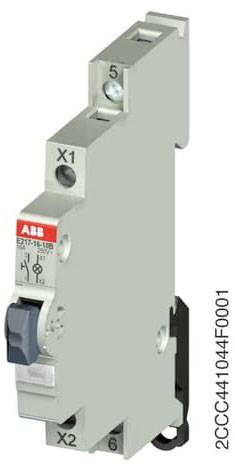

ABB 2CCA703160R0001 E217-16-10B Illuminated push button momentary White IP20 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Illuminated push button
Lighting type
LED
Contact type
1 maker
IP rating
IP20
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Illuminated push button
- Switch/button features
+ LED
- Casing/button colour
White
- Functions
momentary
- Lighting type
LED
- Colour
White
- Bulb type
LED (monochrome)
- Contact type
1 maker
- Recess length
68 mm
- Recess depth
68 mm
IP20
- Content
1 pc(s)
- Switching current (inductive)
16 A
- Type
E217-16-10B
AC
TRUE
75 mm
LED
0.5
IP20
0
1
0
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2331542 ABB 2CCA703160R0001 E217-16-10B Illuminated push button momentary White IP20 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2331542 ABB 2CCA703160R0001 E217-16-10B Illuminated push button momentary White IP20 1 pc(s) Piece
Description
The buttons with LED are equipped with a contact (NO contact or NC contact). The different colors of the LED lights are based on the DIN60204-1 (color coding control panels and their meaning). The width is always 9 mm (0.5 TE). The buttons with LED are ideal for signaling or reporting back the operating status of the controlled consumers.
This text is machine translated.
This text is machine translated.
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
