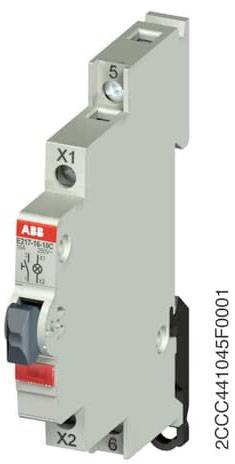

ABB 2CCA703161R0001 E217-16-10C Illuminated push button momentary Red (W x H) 9 mm x 85 mm IP20 1 pc(s)
EAN:
Part number:
Item no:
Product type
Illuminated push button
Lighting type
LED
Contact type
1 maker
Width
9 mm
IP rating
IP20
Datasheet (PDF)
Technical specifications
- Product type
Illuminated push button
- Switch/button features
+ LED
- Casing/button colour
Red
Grey
- Functions
momentary
- Lighting type
LED
- Colour
Red
- Bulb type
LED (monochrome)
- Contact type
1 maker
- Max. switching capacity
1.1 W
- Width
9 mm
- Height
85 mm
- Recess depth
75 mm
IP20
- Content
1 pc(s)
- Dim
(W x H) 9 mm x 85 mm
- Switching current (inductive)
16 A
- Type
E217-16-10C
AC
TRUE
75 mm
LED
0.5
IP20
0
1
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2332119 ABB 2CCA703161R0001 E217-16-10C Illuminated push button momentary Red (W x H) 9 mm x 85 mm IP20 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2332119 ABB 2CCA703161R0001 E217-16-10C Illuminated push button momentary Red (W x H) 9 mm x 85 mm IP20 1 pc(s)
Description
The buttons with LED are equipped with a contact (NO contact or NC contact). The different colors of the LED lights are based on the DIN60204-1 (color coding control panels and their meaning). The width is always 9 mm (0.5 TE). The buttons with LED are ideal for signaling or reporting back the operating status of the controlled consumers.
This text is machine translated.
This text is machine translated.
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
