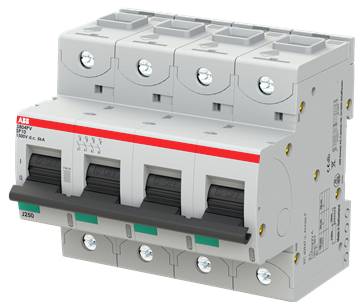

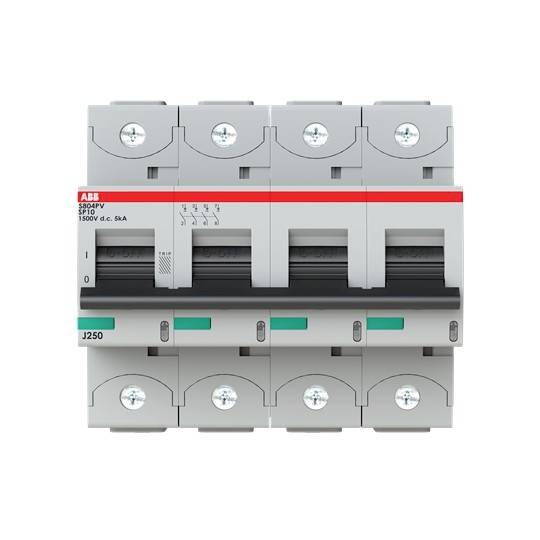

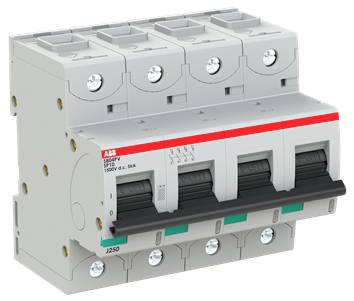

ABB 2CCF019624R0001 S804PV-SP16 String fuse 1 pc(s)
EAN:
Part number:
Item no:
Product type
String fuse
Min. temperature
-40 °C
Max. temperature
70 °C
IP rating
IP20
Content
1 pc(s)
Technical specifications
- Product type
String fuse
- Min. temperature
-40 °C
- Max. temperature
70 °C
IP20
- Content
1 pc(s)
- Type
S804PV-SP16
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3784784 ABB 2CCF019624R0001 S804PV-SP16 String fuse 1 pc(s)
Description
The high-performance circuit breakers of the series S800PV-SP protect cables and wires against overload and short circuit. They have a rated short circuit breaking capacity of 5 kA at 1,500 V DC for photovoltaic applications. It offers an equally effective protection against overload with its thermal release mechanism as with its electromechanical release mechanism against short circuit. The S800PV complies with the IEC / EN 60947-2 standard and allows the application for industrial purposes. Numerous approvals make it fit for worldwide use and the extensive accessories make it even more comfortable to use. Due to the very fast arc extinguishing, your installation is best protected with the S800PV.
