Name: ABB 2CCG001158R0001 SCU200 Control unit Ethernet, RS-232, RS-485 24 V 1 pc(s)
Brand: ABB
SKU: 3785474

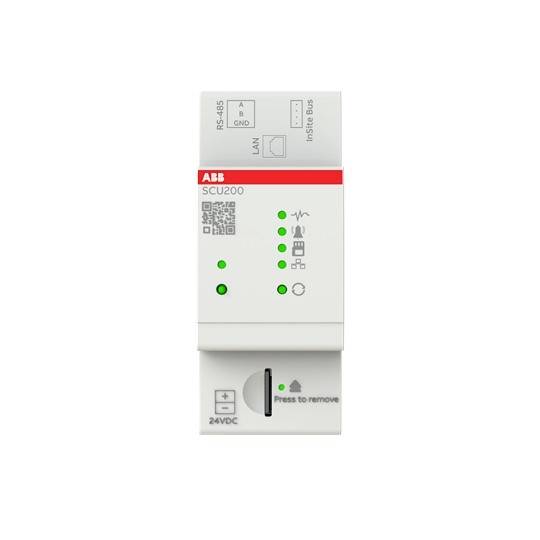

ABB SCU200 industrial control module with status LEDs, LAN and RS-485 ports, and 24VDC power input.<br>

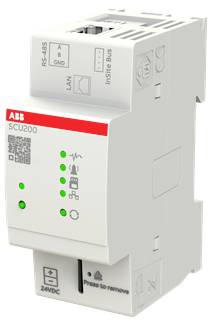

ABB SCU200 industrial communication module with status LEDs and ports, labeled for RS-485, LAN, Inside Bus, and 24VDC.<br>

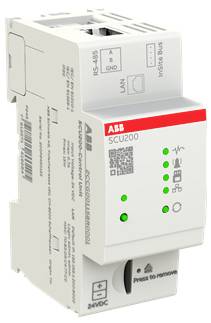

ABB SCU200 DIN-rail industrial controller with status LEDs, RS-485 and Ethernet ports, and 24VDC power connection.

1/3

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Control unit

Interfaces: Ethernet
RS-232
RS-485

Type: SCU200

Operating voltage: 24 V

Dim: (W x H) 35.8 mm x 87 mm

Height: 87 mm

Width: 35.8 mm

Manufacturer part #: 2CCG001158R0001

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3785474 ABB 2CCG001158R0001 SCU200 Control unit Ethernet, RS-232, RS-485 24 V 1 pc(s)

Description

The control unit allows local energy monitoring for the evaluation, storage and visualization of data from connected measuring devices, configuration of alarm values as well as manual and automated switching of inputs and outputs. The control unit has a built-in local web server that allows you to visualize real-time values, past values, system data, and alarm messages on various devices (PC, tablet, smartphone) on the network. 16 Modbus RTU subscribers (e.g. energy counters, network analysis devices, digital surge protection), 16 Modbus TCP subscribers as well as 32 InSite-Bus subscribers (current sensors, I/O-modules, digital auxiliary switch) can be connected. The device is modular and expandable to provide additional functions. The measured data can be exported via CSV file, e-mail or FTP or transferred via REST API or Modbus to higher-level energy management systems or building control systems.

This text is machine translated.
