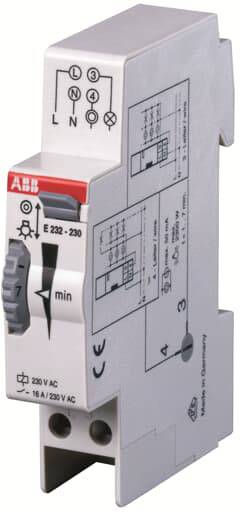

ABB 2CDE110003R0511 TDR DIN rail 230 V
EAN:
Part number:
Item no:
Product type
TDR
Nominal voltage
230 V
Mounting type
DIN rail
Nominal current
150 A
Depth
59 mm
Datasheet (PDF)
Technical specifications
- Product type
TDR
- Nominal voltage
230 V
- Nominal current
150 A
- Mounting type
DIN rail
- Depth
59 mm
- Weight
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2325199 ABB 2CDE110003R0511 TDR DIN rail 230 V
User & Safety Instructions
User & Safety Instructions 2325199 ABB 2CDE110003R0511 TDR DIN rail 230 V
Description
Staircase light timer with off-delay are actuated by buttons, which are often equipped with a glow lamp. The shift levers are designed for a glow lamp current of up to 150 mA and are therefore ideally suited for systems in multi-story buildings.The staircase light timer with off-delay E 232-230 has an electromechanical timer relay with synchronous motor drive, with which a high operational safety is ensured in every installation position. The time range can be set in 15-second increments of one to seven minutes. Can be switched as per 30s. The multifunctional devices of the E 232E-230 Multi 10 and E 232E-8/230 Multi 10 series have 10 functions that can be set on the front of the device.
