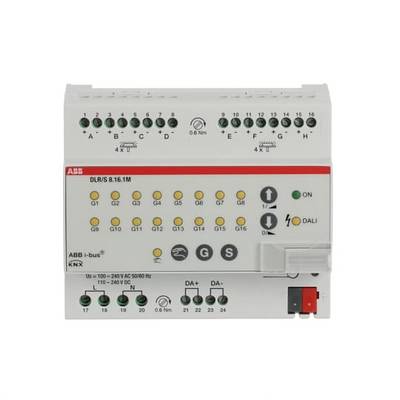

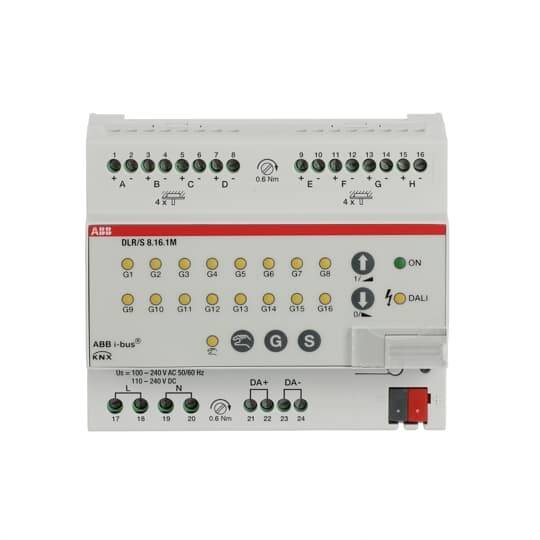

ABB 2CDG110101R0011 DALI actuator DLR/S8.16.1M
EAN:
Part number:
Item no:
Technical specifications
- Channels
1
- Factory colour
Multicolour
IP20
- Features
LED display
- Hub
Not required, optional for remote access
- Mounting type
DIN rail
- Operating voltage
240 V DC/AC
1.6 W
- Weight
0
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3786942 ABB 2CDG110101R0011 DALI actuator DLR/S8.16.1M
Description
Single-Master DALI controller according to DALI (EN 62386), for switching and dimming 16 independent light groups. A maximum of 64 standard DALI subscribers (DT0) after DALI or DALI-2 can be connected. In connection with 8 light sensors LF/U 2.1 the device can be used as 8x light controller for constant light control. Error feedback messages can be programmed and activated via KNX. With comfortable manual operation and status display. The addressing and group assignment of the DALI participants is performed via the ABB i-bus® tool. The i-bus® tool also supports the parameterization of constant light control. : KNX
