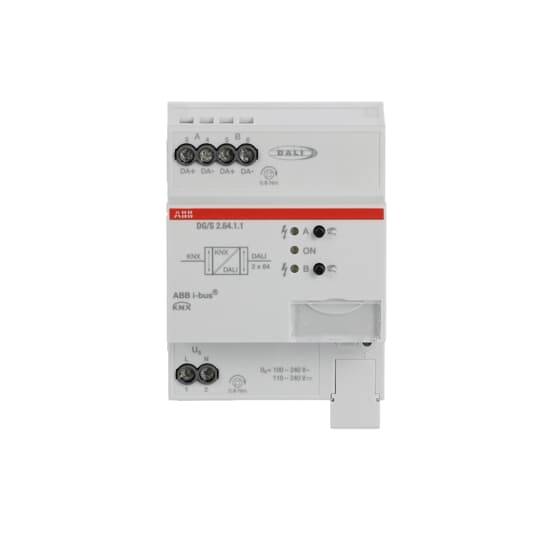

ABB 2CDG110199R0011 DALI gateway DG/S2.64.1.1

Single-Master DALI controller certified according to DALI-2 (EN 62386). The device is used to control DALI or DALI-2 standard subscribers via ABB i-bus® KNX. One DALI output for up to 64 DALI subscribers. The DALI power supply is integrated. Activation can be performed per DALI subscriber (64), by means of light groups (16), by broadcast or by scenes (16). Extensive error and error messages are available. The functions slave, staircase light, lock and forced guiding are integrated. DALI emergency light converters according to EN 62386-202, DT1 are supported. Emergency light converter can be used to trigger function tests and continuous tests via KNX and to provide the result on the KNX. Other DALI nodes, e.g. DT6 or DT8, can be controlled via standard DALI commands in accordance with EN 62386-102. A separate software tool (ABB i-bus® tool) is available for diagnostics and individual changes to the DALI address or group assignment. : KNX

This text is machine translated.
