ABB 2CDL010001R1637 16 mm² 80 A 690 V
EAN:
Part number:
Item no:
Product type
Phase modifier
Nominal voltage
690 V
Cross section
16 mm²
Nominal current
80 A
Nominal current - rounded value
80 A
Datasheet (PDF)
Technical specifications
- Number of division units: -
- Rated short-term current strength ICW: 25
- Rated surge voltage: -
- Suitable for number of devices: 37
- Suitable for devices with auxiliary switch: No.
- Suitable for devices with N-conductor: Yes
- Isolated: Yes
- Max. Rated operating voltage UE: 690
- Cross section: 16
- Division dimension: 17.5
- Conditional rated short-circuit current IQ: -
- Rated continuous current IU: 80
- Electrical connection type: Pin
- Number of pins: 37
- Length: 989
- Number of phases: 1
- Nominal voltage
690 V
- Product type
Phase modifier
- Cross section
16 mm²
- Nominal current
80 A
- Nominal current - rounded value
80 A
- Content
1 pc(s)
- Length
989 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2328365 ABB 2CDL010001R1637 16 mm² 80 A 690 V
User & Safety Instructions
User & Safety Instructions 2328365 ABB 2CDL010001R1637 16 mm² 80 A 690 V
Description

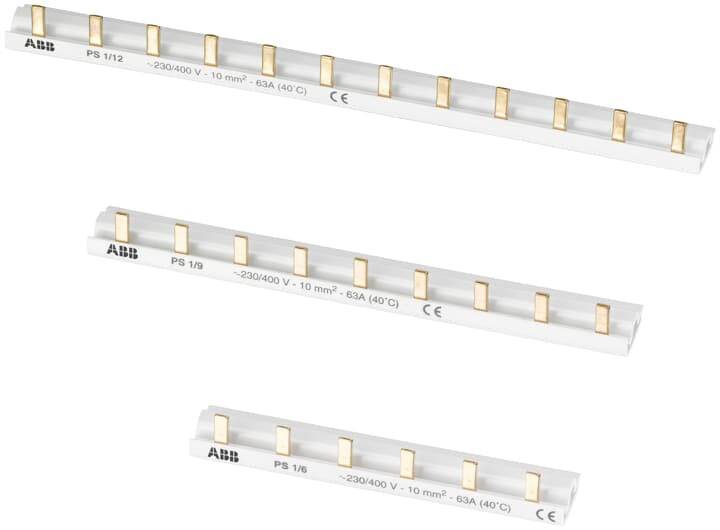

ABB phase rails enable the safe and economical cross-wiring of circuit breakers, residual current protection devices and other modular installation devices. The following must be observed for correct phase rail selection: Terminal type (double terminal or cage terminal), number of terminals (1, 2, 3, 4, 1+N or 3+N), device type (circuit breakers, residual current protective devices or modular installation devices), combinations of different device types, use of circuit breakers with auxiliary switches mounted on the right and bottom, phase rail cross-section (current carrying capacity), number of modules (choice of standard phase rails or phase rails)
