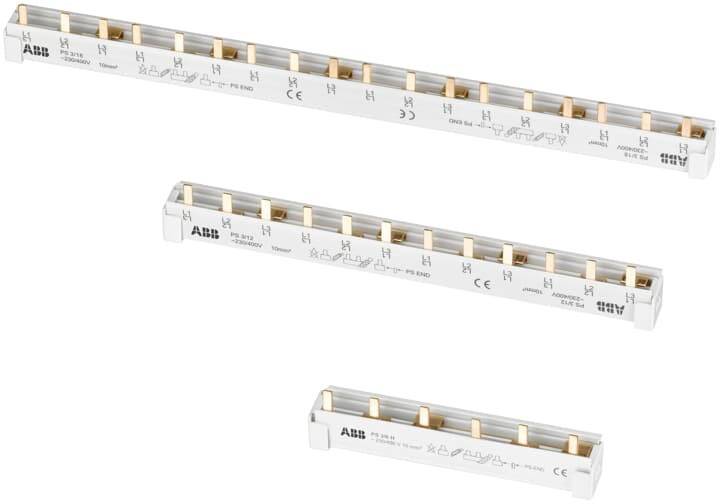

ABB 2CDL230001R1011 PS3/11 phase rails 3Ph.,11Pins,10qmm Phase modifier 10 mm² 63 A 690 V 1 pc(s)
EAN:
Part number:
Item no:
Product type
Phase modifier
Nominal voltage
690 V
Cross section
10 mm²
Nominal current
63 A
Nominal current - rounded value
63 A
Datasheet (PDF)
Technical specifications
- Number of units: -Rated short-term current strength ICW: 25Dimensioning surge voltage: -Suitable for number of devices: 3Suitable for devices with auxiliary switch No.Suitable for devices with N-conductor: No.Insulated: YesMax. Rated operating voltage Ue: 690Cross section: 10Pitch: 17.5Conditional short-circuit current IQ: -Rated Continuous Current IU:63Electrical connection type: PinNumber of pins: 11Length: 195Number of phases: 3
- Nominal voltage
690 V
- Product type
Phase modifier
- Cross section
10 mm²
- Nominal current
63 A
- Nominal current - rounded value
63 A
- Content
1 pc(s)
- Length
195 mm
- Weight
0
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2325624 ABB 2CDL230001R1011 PS3/11 phase rails 3Ph.,11Pins,10qmm Phase modifier 10 mm² 63 A 690 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2325624 ABB 2CDL230001R1011 PS3/11 phase rails 3Ph.,11Pins,10qmm Phase modifier 10 mm² 63 A 690 V 1 pc(s)
Description
ABB phase rails enable the safe and economical cross-wiring of circuit breakers, residual-current protective devices and other modular installation devices. For correct phase bar selection, the following must be observed: Terminal type (double terminal or cage terminal), pole number of the devices (1, 2, 3, 4, 1+N or 3+N), Device type (circuit breakers, residual current circuit breakers or modular installation devices), combinations of different types of equipment, use of circuit breakers with auxiliary switches mounted on the right and bottom, phase rails cross-section (current carrying capacity), number of modules (selection from standard phase rails or short phase rails)
