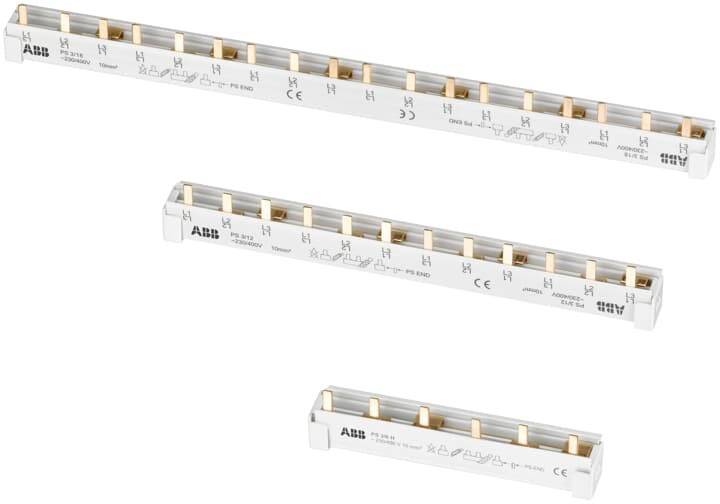

ABB 2CDL230001R1612 PS3/12/16 PHASE TRACK 3Ph.,12Pins,16qmm Phase modifier Grey 80 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Phase modifier
Factory colour
Grey
Nominal current
80 A
Nominal current - rounded value
80 A
Content
1 pc(s)
Datasheet (PDF)
Technical specifications
- Product type
Phase modifier
- Factory colour
Grey
- Nominal current
80 A
- Nominal current - rounded value
80 A
- Content
1 pc(s)
- Length
214 mm
- Weight
0
Grey
TRUE
3
80 A
12
216 m
25 kA
12
4.5 kV
Pin
25 kA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2328102 ABB 2CDL230001R1612 PS3/12/16 PHASE TRACK 3Ph.,12Pins,16qmm Phase modifier Grey 80 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2328102 ABB 2CDL230001R1612 PS3/12/16 PHASE TRACK 3Ph.,12Pins,16qmm Phase modifier Grey 80 A 1 pc(s)
Description
ABB phase rails enable the safe and economical cross-wiring of circuit breakers, residual current protection devices and other modular installation devices. For correct phase rail selection, the following must be observed: Terminal type (double terminal or cage terminal), number of terminals (1, 2, 3, 4, 1+N or 3+N), Device type (circuit breakers, residual current protective devices or modular installation devices), combinations of the different device types, use of circuit breakers with auxiliary switches mounted on the right and bottom, phase rail cross-section (current carrying capacity), number of modules (selection of standard phase rails or abbreviated phase rails)
