ABB 2CDL230002R1010 PS3/10-FI PHASE RAIL 3Ph.,10Pins,10qmm,FOR FI Phase modifier 10 mm² 63 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Phase modifier
Cross section
10 mm²
Nominal current
63 A
Nominal current - rounded value
63 A
Content
1 pc(s)
Datasheet (PDF)
Technical specifications
- Number of division units: -
- Rated short-term current strength ICW: 25
- Rated surge voltage 4
- Suitable for number of devices: 3
- Suitable for devices with auxiliary switch: No.
- Suitable for devices with N-conductor: Yes
- Isolated: Yes
- Max. Rated operating voltage UE: 690
- Cross section: 10
- Division dimension: 17.5
- Conditional rated short-circuit current IQ: -
- Rated continuous current IU: 63
- Electrical connection type: Pin
- Number of pins: 10
- Length 174
- Number of phases: 3
- Product type
Phase modifier
- Cross section
10 mm²
- Nominal current
63 A
- Nominal current - rounded value
63 A
- Content
1 pc(s)
- Length
174 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2325355 ABB 2CDL230002R1010 PS3/10-FI PHASE RAIL 3Ph.,10Pins,10qmm,FOR FI Phase modifier 10 mm² 63 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2325355 ABB 2CDL230002R1010 PS3/10-FI PHASE RAIL 3Ph.,10Pins,10qmm,FOR FI Phase modifier 10 mm² 63 A 1 pc(s)
Description

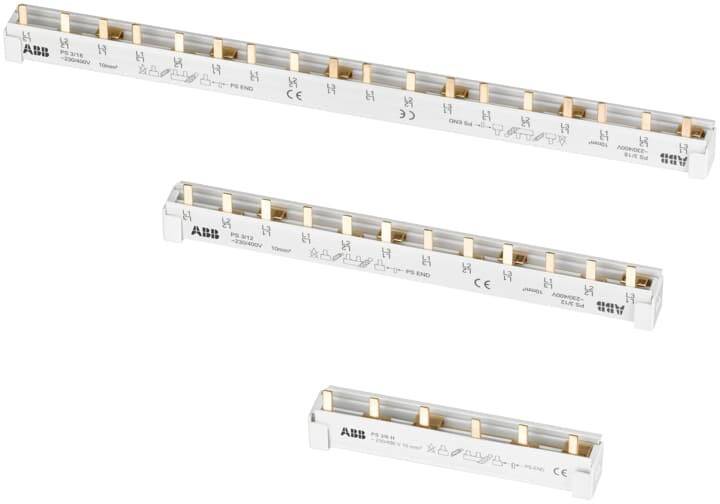

ABB phase rails enable the safe and economical cross-wiring of circuit breakers, residual current protection devices and other modular installation devices. For correct phase rail selection, the following must be observed: Terminal type (double terminal or cage terminal), number of terminals (1, 2, 3, 4, 1+N or 3+N), Device type (circuit breakers, residual current protective devices or modular installation devices), combinations of the different device types, use of circuit breakers with auxiliary switches mounted on the right and bottom, phase rail cross-section (current carrying capacity), number of modules (selection of standard phase rails or abbreviated phase rails)
