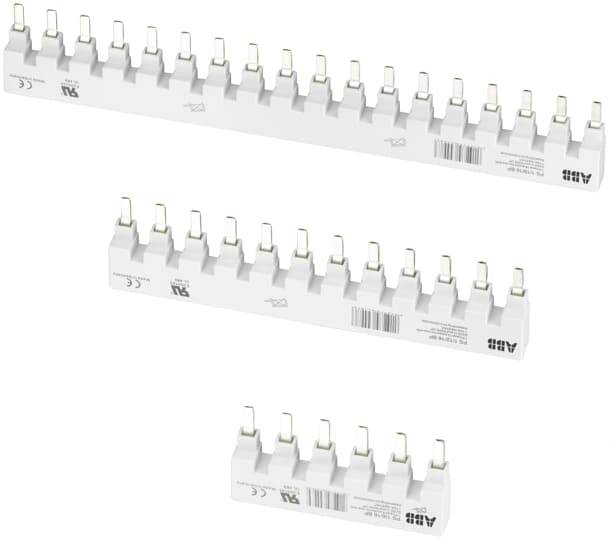

ABB 2CDL230508R4825 PS 3/48/25 H CB phase bar 3 Ph, 48 Pins, 25qmm Phase modifier 1 pc(s)
EAN:
Part number:
Item no:
Product type
Phase modifier
Number of pins
48
Content
1 pc(s)
Colour
Grey
Insulated
TRUE
Datasheet (PDF)
Technical specifications
- Product type
Phase modifier
- Number of pins
48
- Content
1 pc(s)
Grey
TRUE
3
25 mm²
80 A
48
1005 mm
56
Pin
10 kA
TRUE
FALSE
16
600 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3113516 ABB 2CDL230508R4825 PS 3/48/25 H CB phase bar 3 Ph, 48 Pins, 25qmm Phase modifier 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3113516 ABB 2CDL230508R4825 PS 3/48/25 H CB phase bar 3 Ph, 48 Pins, 25qmm Phase modifier 1 pc(s)
Description
The CB series phase rails meet the requirements of UL508. They are therefore suitable for a safe and economical cross-wiring of circuit breakers, residual-current protective devices and other modular installation devices. For the correct selection, the following points must be observed:
- Number of phases
- Number of pins
- Cross section per phase
- Use of auxiliary switches (H)
