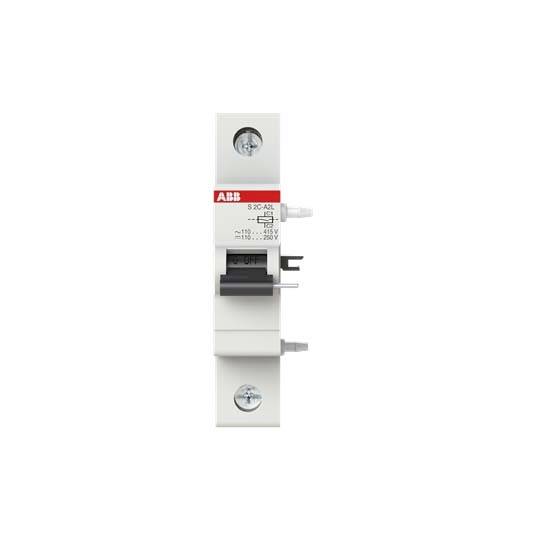

ABB 2CDS200907R0002 S2C-A2L Shunt trip release 1 pc(s)
EAN:
Part number:
Item no:
Product type
Shunt trip release
Length
74 mm
Width
17.5 mm
Height
69 mm
Compatible with (details)
Circuit breaker
Technical specifications
- Product type
Shunt trip release
- Length
74 mm
- Width
17.5 mm
- Height
69 mm
- Compatible with (details)
Circuit breaker
- Content
1 pc(s)
- Type
S2C-A2L
- Dim
(L x W x H) 74 x 17.5 x 69 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3785321 ABB 2CDS200907R0002 S2C-A2L Shunt trip release 1 pc(s)
Description
For remote triggering (switch-off) of the circuit breaker, with self-interruption within 10 ms. Suitable for S200 series circuit breakers, FI/LS combinations DS200 (DDA200 + S200) and SD200 series switch disconnectors. The working current release possesses a relay coil with an integrated contact, which separates the coil from the actuating voltage after trigger e.g. of the circuit breaker, so no further current flows even with continuously applied actuation voltage.
