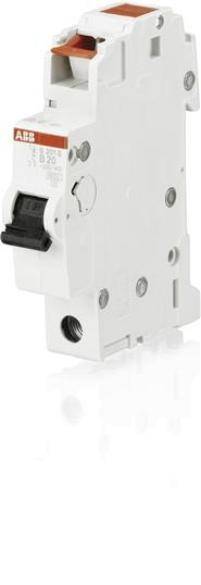

ABB 2CDS251002R0105 2CDS251002R0105 Circuit breaker 1-pin 10 A
EAN:
Part number:
Item no:
Product type
Circuit breaker
Number of pins
1
Release characteristics
B
Nominal current - rounded value
10 A
Type
1-pin
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.45
3
6% = € 0.30
€ 5.15
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 5.45 / piece)
€ 5.45
plus VAT.
Technical specifications
- Type
1-pin
- Nominal voltage (details)
230/400 V
- Product type
Circuit breaker
- Number of pins
1
- Release characteristics
B
- Nominal current - rounded value
10 A
- Nominal current
10 A
- Factory colour
Multicolour
- Dim
(W x D) 89 mm x 69 mm
- Content
1 pc(s)
- Switch-off capacity
6 kA
- Operating voltage
230/400 V AC
- Width
89 mm
- Depth
69 mm
- Type
10 A
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 613123 ABB 2CDS251002R0105 2CDS251002R0105 Circuit breaker 1-pin 10 A
Description
Thanks to a clever connection technology, this circuit breaker can be wired much faster and more conveniently.
Circuit breaker switch 1-pin with trigger characteristic B. The rated current is 10 A with a rated breaking capacity 6 kA at a rated voltage of 230/400 V/AC.
Circuit breaker switch 1-pin with trigger characteristic B. The rated current is 10 A with a rated breaking capacity 6 kA at a rated voltage of 230/400 V/AC.
Features
- Inlet: screw terminals up to 35 mm²
- Outlet: plug terminals up to 4 mm².
