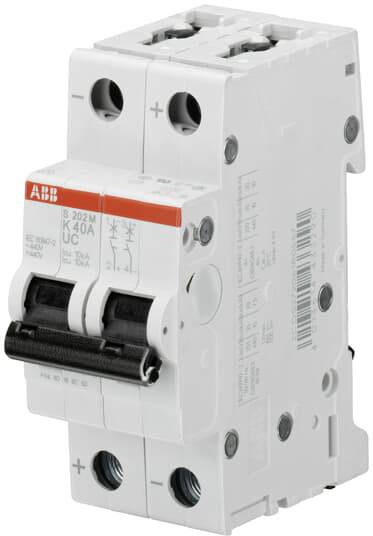

ABB 2CDS272061R0277 S202M-K2UC Circuit breaker 2-pin
EAN:
Part number:
Item no:
Product type
Circuit breaker
Number of pins
2
Content
1 pc(s)
Depth
69 mm
Voltage type
AC/DC
Datasheet (PDF)
Technical specifications
- Product type
Circuit breaker
- Number of pins
2
- Content
1 pc(s)
- Depth
69 mm
AC/DC
69 mm
2 A
400 V
50-60 MHz
K
440 V
3
3
3
2
FALSE
3.56 W
IP20
2
FALSE
0.75-35 mm²
0.75-25 mm²
-25-55 °C
FALSE
TRUE
2
10 kA
10 kA
15 kA
15 kA
4
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2329362 ABB 2CDS272061R0277 S202M-K2UC Circuit breaker 2-pin
User & Safety Instructions
User & Safety Instructions 2329362 ABB 2CDS272061R0277 S202M-K2UC Circuit breaker 2-pin
Description
The circuit breakers of the series S 200 M UC protect cables and lines against overload and short-circuit according to DIN VDE 0100-430 and DIN VDE 0100-530. They comply with the construction regulations DIN VDE 0641-11 or IEC/EN 60898-1, DIN VDE 0660-101 or IEC/EN60947-2. Its patented terminal clamp provides for simple and safe contact and handling by means of a pressure plate. For better visibility when wiring, the connection opening for cables is above the connection opening for the phase rail. Conductor cross-sections up to 35 mm² can be connected directly to the device via the terminal clamp with insulation in protection class IP20. The extensive range of accessories offers you everything was needed for your installation tasks. The S200 M UC impresses with its high short-circuit breaking capacity and the flexible use for AC and DC applications. Each device is subjected to three times intensive tests for quality and performance before delivery.
