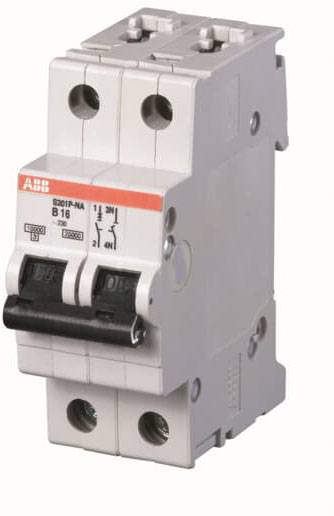

ABB 2CDS281103R0105 S201P-B10NA Circuit breaker 2-pin
EAN:
Part number:
Item no:
Product type
Circuit breaker
Number of pins
2
Release characteristics
B
Nominal current - rounded value
RoHS-compliant
Technical specifications
- Product type
Circuit breaker
- Number of pins
2
- Release characteristics
B
- RoHS-compliant
- Nominal current - rounded value
- Dim
- Content
1 pc(s)
- Depth
69 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2330289 ABB 2CDS281103R0105 S201P-B10NA Circuit breaker 2-pin
Description
The circuit breakers of the series S 200 P protect cables and lines against overload and short-circuit according to DIN VDE 0100-430 and DIN VDE 0100-530. They comply with the construction regulations DIN VDE 0641-11 or IEC/EN 60898-1, DIN VDE 0660-101 or IEC/EN60947-2 and UL1077. For better visibility when wiring, the connection opening for cables is above the connection opening for the phase rail. Conductor cross-sections up to 25 mm² can be connected directly to the device via the terminal clamp with insulation in protection class IP20. The extensive range of accessories offers you everything was needed for your installation tasks. Numerous approvals make the S 200 P fit for worldwide use. Each device is subjected to three times intensive tests for quality and performance before delivery.
