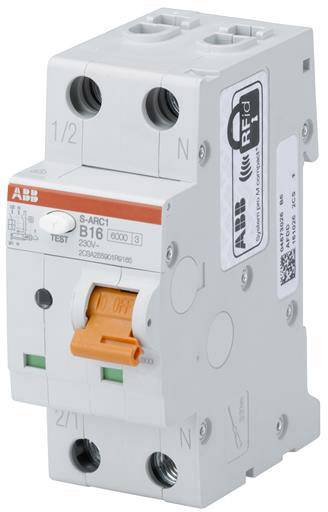

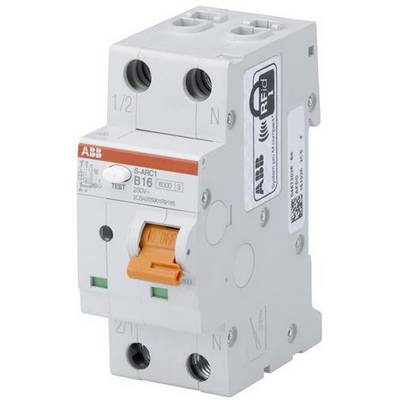

ABB 2CSA255901R9165 AFCI 1-pin 16 A 230 V 1 pc(s)
EAN:
Part number:
Item no:
Factory colour
Multicolour
Width
35 mm
Height
85 mm
Content
1 pc(s)
Type
S-ARC1-B16
Datasheet (PDF)
Highlights & Details
Error arc protection S-ARC1-B16
- Number of pins: 2
- The number of protected pins: 1
- With fuse protection switch 16A
Technical specifications
- Factory colour
Multicolour
- Width
35 mm
- Height
85 mm
- Content
1 pc(s)
- Type
S-ARC1-B16
- Dim
(W x H x D) 35 x 85 x 69 mm
- Depth
69 mm
- Nominal current
16 A
- Nominal voltage
230 V
- Number of pins
1
- Release characteristics
B
- Operating voltage
230 - 240 V
- Weight
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1826936 ABB 2CSA255901R9165 AFCI 1-pin 16 A 230 V 1 pc(s)
Description
S-ARC1 is a 1 P + N arc fault detection device (AFDD) with an integrated MCB in two modules, for protection against short-circuit currents, overload, Erdlichtbogenfehler, Parallel and series arc arc error error.
This text is machine translated.
This text is machine translated.
Features
- Loss Of Power 2.8 W
