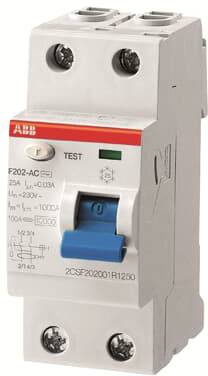

ABB 2CSF202199R1250 F202 A-25/0,03 110V RCCB A 2-pin 25 A 0.03 A 230 V
EAN:
Part number:
Item no:
Product type
RCCB
Number of pins
2
Release characteristics
A
Differential current rating
0.03 A
Nominal current - rounded value
25 A
Datasheet (PDF)
Technical specifications
- Product type
RCCB
- Number of pins
2
- Release characteristics
A
- Differential current rating
0.03 A
- Nominal current
25 A
- Nominal current - rounded value
25 A
- Content
1 pc(s)
- Nominal voltage
230 V
- Depth
69 mm
DIN rail
AC
69 mm
25 A
230 V
500 V
2
0.03 A
2
2
FALSE
IP2X
25-25 mm²
25-25 mm²
-25-55 °C
TRUE
4
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2323027 ABB 2CSF202199R1250 F202 A-25/0,03 110V RCCB A 2-pin 25 A 0.03 A 230 V
User & Safety Instructions
User & Safety Instructions 2323027 ABB 2CSF202199R1250 F202 A-25/0,03 110V RCCB A 2-pin 25 A 0.03 A 230 V
Description
Residual current protective devices (RCCBs) offer personal and property protection as well as protection against electrically ignited fires in accordance with DIN VDE 0100-410 and DIN VDE 0100-530. The F200 series residual current circuit breakers provide protection for sinusoidal alternating currents and pulsating currents with smooth DC residual current of up to 6 mA against earth. As well as fault protection (protection against indirect contact), additional protection (with IΔn ≤ 30 mA) and fire protection (with IΔn ≤ 300 mA). Applications are mainly in commercial and industrial applications. The extensive range of accessories offers you everything was needed for your installation tasks. The F200 A 110 V series has no VDE approval and can be used especially for 110 V AC and 230 V AC applications. They comply with the product standards IEC 61008-1, IEC 61008-2-1. The approvals are CCC and UL 1053.
