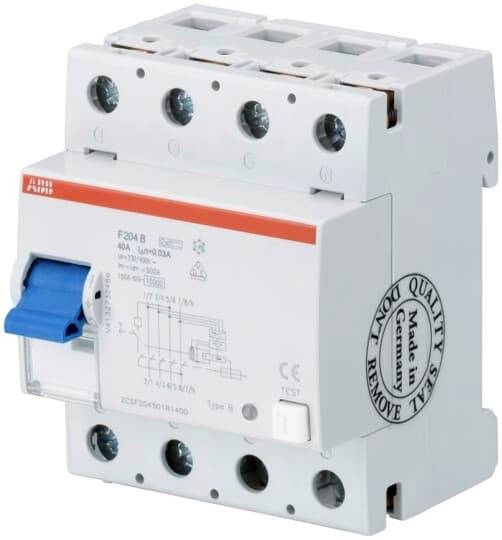

ABB 2CSF204701R1400 F204B+40/0,03 RCCB RCD (all types of current) B+ 40 A 0.03 A 400 V
EAN:
Part number:
Item no:
Factory colour
Multicolour
Length
90 cm
Width
73 cm
Height
78 cm
Content
1 pc(s)
Datasheet (PDF)
Technical specifications
- Factory colour
Multicolour
- Length
90 cm
- Width
73 cm
- Height
78 cm
- Content
1 pc(s)
- Type
F204B+40/0,03
- Dim
(L x W x H) 90 x 73 x 78 cm
- Depth
69 mm
- Model
RCD (all types of current)
- Differential current rating
0.03 A
- Nominal current
40 A
- Nominal voltage
400 V
- Switch-off capacity
1 kA
- Number of pins
4
- Release characteristics
B+
DIN rail
AC
69 mm
40 A
400 V
500 V
4
0.03 A
B+
FALSE
1 kA
3 kA
2
4
TRUE
FALSE
50 Hz
IP2X
25-25 mm²
0-25 mm²
TRUE
TRUE
4 kV
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3115700 ABB 2CSF204701R1400 F204B+40/0,03 RCCB RCD (all types of current) B+ 40 A 0.03 A 400 V
Description
F200 type B+ for smooth direct fault currents and enhanced, preventive fire protection
All current sensitive, 10 ms short time delayed, 3 kA surge proof
Residual current circuit breakers (RCCs) provide personal protection and property protection as well as protection from electrical fires according to DIN VDE 0100-410 and DIN VDE 0100-530.
The F200 B+ series residual current circuit breakers ensure protection against earth in the case of sinusoidal AC currents, pulsating currents and smooth DC fault currents. Fault protection (protection in case of indirect contact), additional protection (with IΔn ≤ 30 mA) and fire protection (with I∆n ≤ 300 mA). It fulfills the product standards for RCDs type A IEC/EN 61008-1, 61543-2-1, 61008 (VDE 0664 10, 11, 30) and for type B+ DIN VDE 0664-400.
They are mainly used in commercial and industrial applications. The extensive range of accessories offers you everything that you need WAS for your installation tasks. The RCCB type B+ detect smooth DC fault currents, react earlier than the RCCB type B with max. 420 mA and have a frequency range of 0 ... 20 kHz for detecting the residual current. They therefore offer enhanced, preventive fire protection (extended fire protection according to DIN VDE 0100-530) for e.g. fire-endangered operational areas and commercial units.
