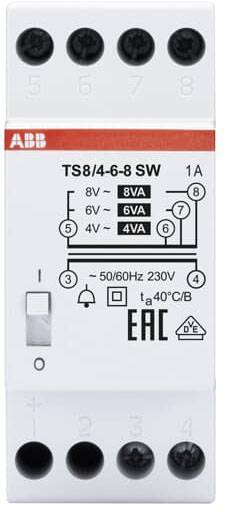

ABB 2CSM081012R0811 Bell transformer 4 V, 6 V, 8 V 2 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Bell transformer
- Mounting type
DIN rail
- Operating voltage
230 V
- Output voltages
4 V
6 V
8 V
- Max. nominal current
2 A
- Width
35 mm
- Height
85 mm
- Length
65 mm
- Dim
(L x W x H) 65 x 35 x 85 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2317894 ABB 2CSM081012R0811 Bell transformer 4 V, 6 V, 8 V 2 A
User & Safety Instructions
User & Safety Instructions 2317894 ABB 2CSM081012R0811 Bell transformer 4 V, 6 V, 8 V 2 A
Description
Conditional short-circuit proof TS bell transformers for supplying extra-low voltage (SELV). Suitable for loads that require short-term supply, especially door bells and chimes. In addition to perfect isolation and separation between primary and secondary circuits, the TS transformers have integrated a thermal protection device in the secondary section, which makes them resistant to short-circuit currents (short-circuit proof due to circumstances). In addition, the TS8/SW series is equipped with a switch for controlling loads at the secondary output.
