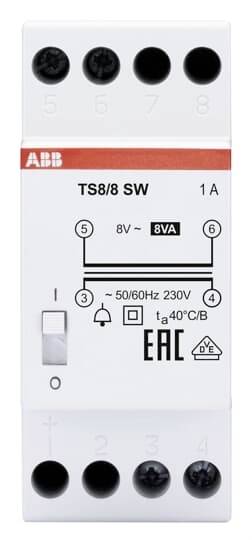

ABB 2CSM081302R0811 Bell transformer 8 V 1 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Bell transformer
- Operating voltage
230 V
- Output voltages
8 V
- Max. nominal current
1 A
- Width
35 mm
- Height
85 mm
- Length
65 mm
- Dim
(L x W x H) 65 x 35 x 85 mm
35 mm
85 mm
Standard bell ringing transformer
TRUE
TRUE
1 A
65 mm
8 W
2
FALSE
TRUE
230 V
8 V
1 A
TRUE
4 W
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3118918 ABB 2CSM081302R0811 Bell transformer 8 V 1 A
User & Safety Instructions
User & Safety Instructions 3118918 ABB 2CSM081302R0811 Bell transformer 8 V 1 A
Description
Conditionally short-circuit proof doorbell transformers TS for supplying with low voltage (SELV). Suitable for loads that require short-term supply, especially door bells and bell games. In addition to perfect insulation and separation between the primary and secondary circuits, the TS transformers have integrated a thermal protective device in the secondary section that makes them resistant to short-circuit currents (limited short-circuit protection). In addition, the TS8/SW series is equipped with a switch for controlling loads at the secondary output.
