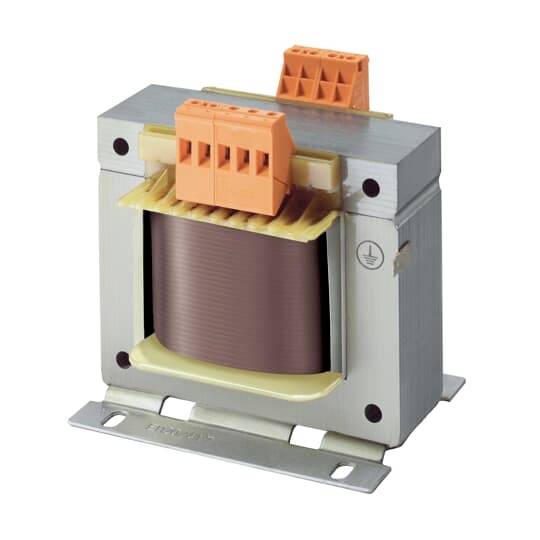

ABB 2CSM201123R0801 Control transformer 100 VA
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
TM-I100/115-230P Control/Isolating Transformer Single Phase, 100VA, Sec. 115-230V AC
- 100 VA
Technical specifications
- Product type
Control transformer
100 VA
- Connection
Clamp
- Width
86 mm
- Height
87 mm
- Dim
(W x H) 86 mm x 87 mm
- Content
1 pc(s)
- Mounting type
DIN rail
- Features
+/- 15 V input voltage terminal
- Type
TM-I100/115-230P
86 mm
87 mm
87 mm
TRUE
Copper
IP00
FALSE
FALSE
FALSE
FALSE
TRUE
F
FALSE
100 VA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3112473 ABB 2CSM201123R0801 Control transformer 100 VA
User & Safety Instructions
User & Safety Instructions 3112473 ABB 2CSM201123R0801 Control transformer 100 VA
Description
Transformer in which primary and secondary windings are electrically isolated by double or reinforced insulation to protect the electrical circuit supplied by the secondary side from the risk of accidental simultaneous contact with ground and live parts or grounded parts in the event of an insulation fault. Complies with CEI standards EN 61558-2-2 and CEI EN 61558-2-4. Primary feed with 230-400 VAC and separate terminals with ±15V for precise control of the input voltage Used in continuous operation and mounting on mounting plates. Mounting on rail up to 160 VA with additional mounting bracket for DIN-rail (TM-C-DIN) possible. Full power pickup at all outputs.
