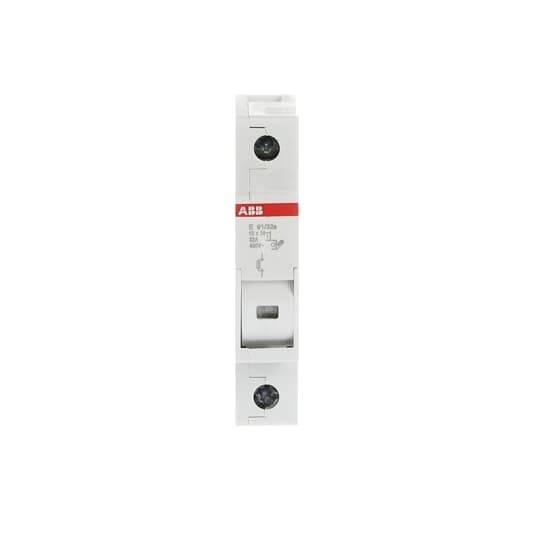

ABB 2CSM202483R1801 E 91/32S Fuse disconnect switch incl. status indicator Suitable for Micro fuse 10.3 x 38 mm 690 V 1
EAN:
Part number:
Item no:
Product type
Fuse disconnect switch
Nominal voltage
690 V
Suitable for
Micro fuse 10.3 x 38 mm
Features
incl. status indicator
Material
Thermoplastic
Datasheet (PDF)
Technical specifications
- Product type
Fuse disconnect switch
- Features
incl. status indicator
- Nominal voltage
690 V
- Material
Thermoplastic
IP20
- Suitable for
Micro fuse 10.3 x 38 mm
- Number of fuses
1
- Content
1 pc(s)
- Type
E 91/32S
400 V
DIN rail
TRUE
64 mm
1
1
IP20
TRUE
TRUE
10x38 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3112479 ABB 2CSM202483R1801 E 91/32S Fuse disconnect switch incl. status indicator Suitable for Micro fuse 10.3 x 38 mm 690 V 1
User & Safety Instructions
User & Safety Instructions 3112479 ABB 2CSM202483R1801 E 91/32S Fuse disconnect switch incl. status indicator Suitable for Micro fuse 10.3 x 38 mm 690 V 1
Description
Fuse disconnect switch for 10.3 x 38 mm fuses for switching under load and protection against short circuit and overload. Housing made of self-extinguishing thermoplastic with high temperature resistance and contact clamps made of silver-plated copper. E 90 Fuse disconnect switches can be sealed (closed) or closed (open). Compatible with phase rails of the S 200-series. With fuse breakage display.
This text is machine translated.
This text is machine translated.
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
