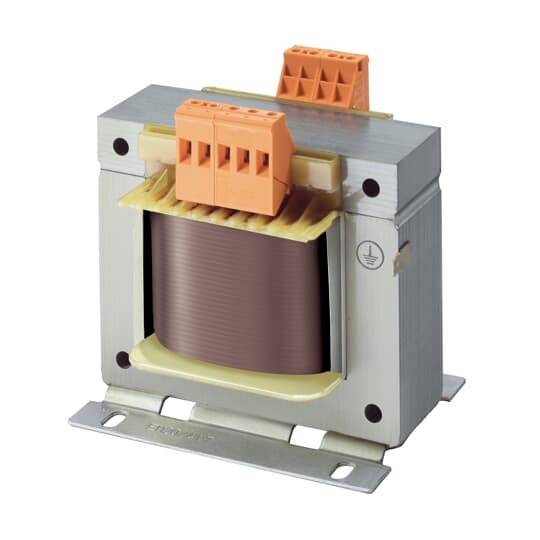

ABB 2CSM204383R0801 Control transformer 2000 VA
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
TM-I2000/115-230P Control/Isolating Transformer Single Phase, 2000VA, Sec. 115-230V AC
- 2000 VA
Technical specifications
- Product type
Control transformer
2000 VA
- Connection
Clamp
- Width
200 mm
- Height
181 mm
- Dim
(W x H) 200 mm x 181 mm
- Content
1 pc(s)
- Mounting type
DIN rail
- Protection class
II
- Features
+/- 15 V input voltage terminal
- Type
TM-I2000/115-230P
200 mm
181 mm
230 mm
FALSE
Copper
IP00
FALSE
FALSE
FALSE
FALSE
TRUE
F
FALSE
2000 VA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3112481 ABB 2CSM204383R0801 Control transformer 2000 VA
User & Safety Instructions
User & Safety Instructions 3112481 ABB 2CSM204383R0801 Control transformer 2000 VA
Description
Transformer in which primary and secondary windings are electrically isolated by double or reinforced insulation to protect the electrical circuit supplied by the secondary side from the risk of accidental simultaneous contact with ground and live parts or grounded parts in the event of an insulation fault. Complies with CEI standards EN 61558-2-2 and CEI EN 61558-2-4. Primary feed with 230-400 VAC and separate terminals with ±15V for precise control of the input voltage Used in continuous operation and mounting on mounting plates. Mounting on rail up to 160 VA with additional mounting bracket for DIN-rail (TM-C-DIN) possible. Full power pickup at all outputs.
