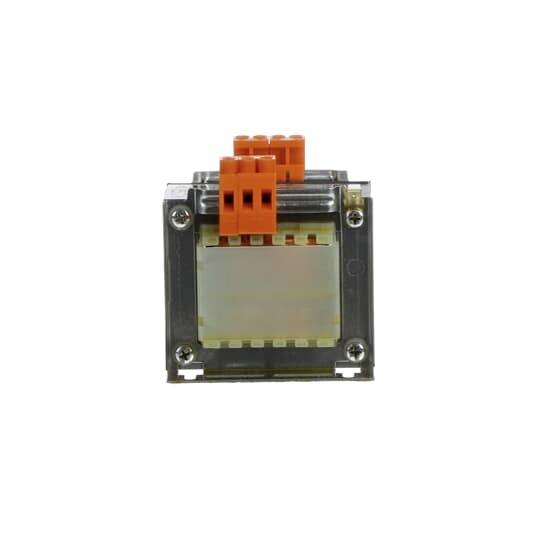

ABB 2CSM207103R0801 Control transformer 100 VA
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
TM-C100/12-24 Control transformer Single-phase, 100VA, secondary 12-24V AC
- 100 VA
Technical specifications
- Product type
Control transformer
- No. of outputs
2 x
- No. of inputs
1 x
100 VA
- Width
86 mm
- Height
90 mm
- Dim
(W x H) 86 mm x 90 mm
- Content
1 pc(s)
- Type
TM-C100/12-24
86 mm
90 mm
87 mm
TRUE
Copper
IP00
FALSE
FALSE
FALSE
FALSE
FALSE
F
FALSE
100 VA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3112527 ABB 2CSM207103R0801 Control transformer 100 VA
User & Safety Instructions
User & Safety Instructions 3112527 ABB 2CSM207103R0801 Control transformer 100 VA
Description
Single phase control transformer for continuous supply of control circuits, for example commands, signaling, interlocks, etc. Supply on the primary side with 230V/400V AC with a rated output depending on type from 50 VA to 2500 VA. Double secondary output with 12-24 V or 115-230 V and each full power tapping at all outputs. Tested according to CEI EN 61558-2-2.
