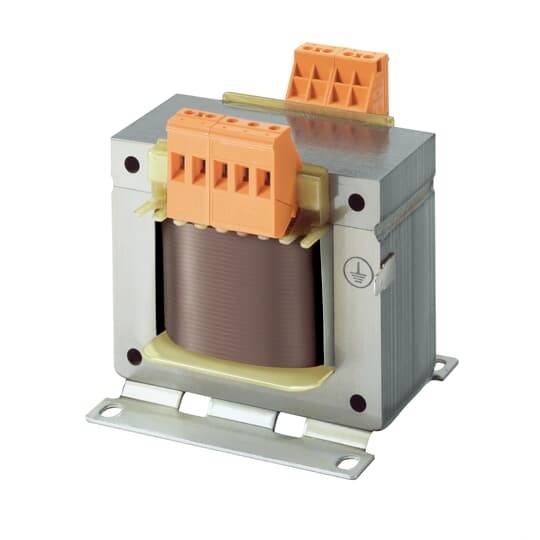

ABB 2CSM207163R0801 Control transformer 100 VA
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
TM-S100/12-24P control / fuse transformer, single phase, 100VA, secondary 12-24V AC
- 100 VA
Technical specifications
- Product type
Control transformer
100 VA
- Connection
Clamp
- Width
200 mm
- Height
87 mm
- Dim
(W x H) 200 mm x 87 mm
- Content
1 pc(s)
- Mounting type
DIN rail
- Features
+/- 15 V input voltage terminal
- Type
TM-S100/12-24P
200 mm
87 mm
87 mm
TRUE
Copper
IP00
FALSE
FALSE
FALSE
TRUE
FALSE
F
FALSE
100 VA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3112530 ABB 2CSM207163R0801 Control transformer 100 VA
User & Safety Instructions
User & Safety Instructions 3112530 ABB 2CSM207163R0801 Control transformer 100 VA
Description
Safety transformer for the supply of SELV and PELV protective extra-low voltage circuits with <50 V (without load). Complies with CEI standards EN 61558-2-2 and CEI EN 61558-2-6. Primary feed with 230-400 VAC and separate terminals with ±15V for precise control of the input voltage Used in continuous operation and mounting on mounting plates. Mounting on rail up to 160 VA with additional mounting bracket for DIN-rail (TM-C-DIN) possible. Full power pickup at all outputs.
