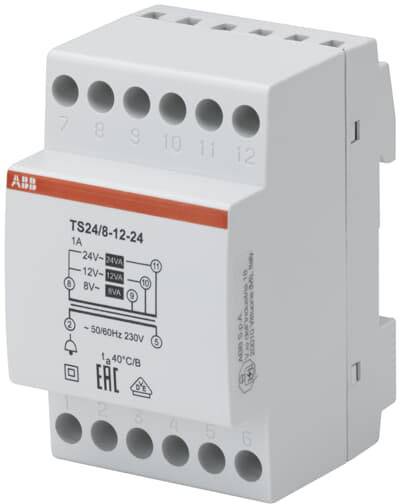

ABB 2CSM228695R0812 Bell transformer 8 V, 12 V, 24 V 3 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Bell transformer
- Mounting type
DIN rail
- Operating voltage
230 V
- Output voltages
8 V
12 V
24 V
- Max. nominal current
3 A
- Width
52.5 mm
- Height
85 mm
- Length
65 mm
- Dim
(L x W x H) 65 x 52.5 x 85 mm
- Screen size diagonal (inches)
1.0 inch
- Weight
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2323797 ABB 2CSM228695R0812 Bell transformer 8 V, 12 V, 24 V 3 A
User & Safety Instructions
User & Safety Instructions 2323797 ABB 2CSM228695R0812 Bell transformer 8 V, 12 V, 24 V 3 A
Description
Transformers of the TS series for low voltage supply (SELV) suitable for loads which require a short-time power supply, especially door bells and bells. In addition to perfect insulation and separation between the primary and secondary circuits, the TS transformers have integrated a thermal protective device in the secondary section that makes them resistant to short-circuit currents (limited short-circuit protection). They are equipped with a heat protection device that automatically restores operation if the transformer has cooled down sufficiently or the overload has been eliminated. The bell transformers of the series ...ARE characterized by a 50% reduction in energy consumption in idle mode.
