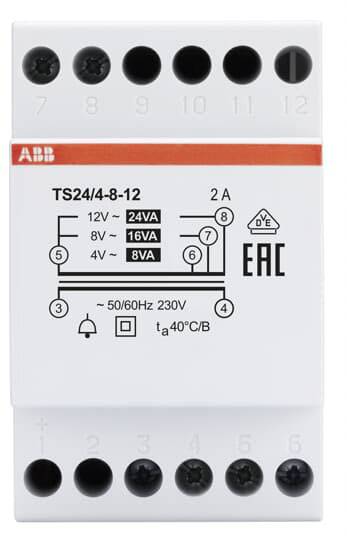

ABB 2CSM228705R0812 Bell transformer 4 V, 8 V 6 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Bell transformer
- Mounting type
DIN rail
- Operating voltage
230 V
- Output voltages
4 V
8 V
- Max. nominal current
6 A
- Width
52.5 mm
- Height
85 mm
- Length
65 mm
- Dim
(L x W x H) 65 x 52.5 x 85 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2322192 ABB 2CSM228705R0812 Bell transformer 4 V, 8 V 6 A
User & Safety Instructions
User & Safety Instructions 2322192 ABB 2CSM228705R0812 Bell transformer 4 V, 8 V 6 A
Description
TS series transformers for the supply of low voltage (SELV), suitable for loads requiring short-term supply, especially door bells and chimes. In addition to perfect isolation and separation between primary and secondary circuits, the TS transformers have integrated a thermal protection device in the secondary section, which makes them resistant to short-circuit currents (short-circuit proof due to circumstances). They are equipped with a thermal protection device that automatically restores operation when the transformer has cooled down sufficiently or the overload has been eliminated. The ring transformers of the series ...ARE characterized by a 50% reduction in power consumption in idle operation.
