ABB 2CSM229921R1341 Twilight switch White 230 V 1 maker
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Twilight switch
- Operating voltage
230 V
- Contact type
1 maker
- Max. switching capacity
1000 W
- Switching capacity (LED)
100 W
IP20
- Factory colour
White
- Dim
(W x H x D) 17.5 x 86 x 65 mm
- Width
17.5 mm
- Height
86 mm
- Depth
65 mm
- Mounting type
Flush mount
230 V
Flush mounted (plaster)
White
17.5 mm
TRUE
1 make contact (NO)
86 mm
65 mm
Untreated
23 s
23 s
TRUE
Thermoplastic
16 A
1000 W
Plastic
2-200 lx
2-200 lx
Separate light sensor
FALSE
Glossy
IP20
FALSE
FALSE
FALSE
65 mm
FALSE
FALSE
FALSE
100 W
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3118929 ABB 2CSM229921R1341 Twilight switch White 230 V 1 maker
User & Safety Instructions
User & Safety Instructions 3118929 ABB 2CSM229921R1341 Twilight switch White 230 V 1 maker
Description

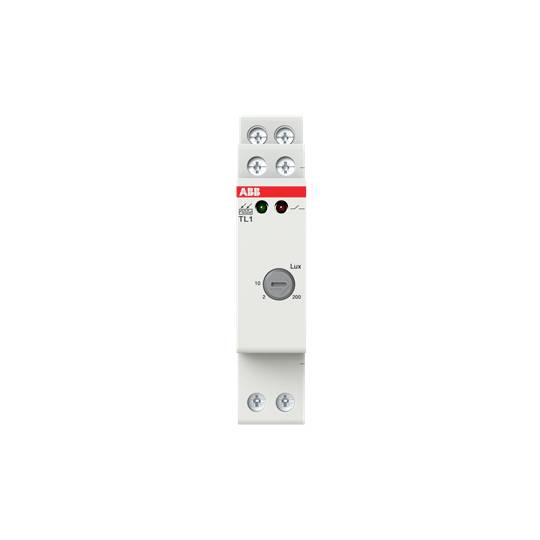

Twilight switch for mounting on DIN top hat rail. Including external light sensor for wall mounting. Complies with standards EN 60669-1, EN 60669-2-1, EN 60730-1. With LED signaling to target value and contact status. Brightness adjustable at the front of the device. With switching delay to avoid unnecessary operation.
