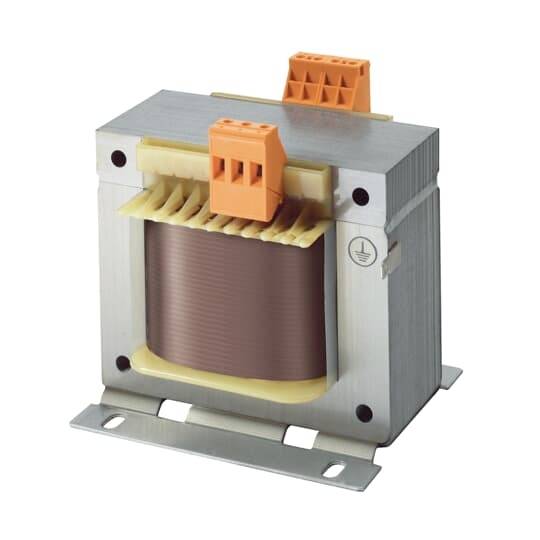

ABB 2CSM236933R0801 Control transformer 100 VA
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
TM-C100/115-230 Single-phase control transformer, 100VA, secondary 115-230V AC
- 100 VA
Technical specifications
- Product type
Control transformer
- No. of outputs
2 x
100 VA
- Width
86 mm
- Height
87 mm
- Dim
(W x H) 86 mm x 87 mm
- Content
1 pc(s)
- Type
TM-C100/115-230
151
150 mm
122 mm
FALSE
Copper
IP20
FALSE
FALSE
FALSE
FALSE
FALSE
F
FALSE
100 VA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3112553 ABB 2CSM236933R0801 Control transformer 100 VA
User & Safety Instructions
User & Safety Instructions 3112553 ABB 2CSM236933R0801 Control transformer 100 VA
Description
Single phase control transformer for continuous supply of control circuits, for example commands, signaling, interlocks, etc. Supply on the primary side with 230V/400V AC with a rated output depending on type from 50 VA to 2500 VA. Double secondary output with 12-24 V or 115-230 V and each full power tapping at all outputs. Tested according to CEI EN 61558-2-2.
