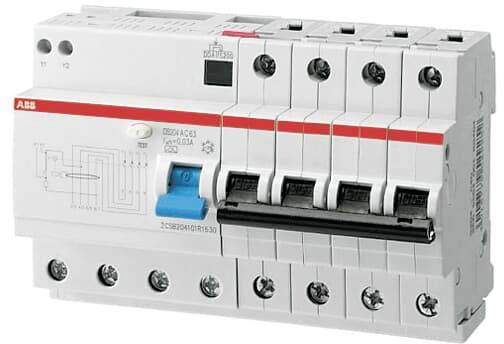

ABB 2CSR254101R1167 RCBO RCD (all types of current) 0.03 A
EAN:
Part number:
Item no:
Product type
RCBO
Differential current rating
0.03 A
Switch-off capacity
6 kA
Dim
(W x H x D) 105 x 93 x 69 mm
Content
1 pc(s)
Datasheet (PDF)
Technical specifications
- Product type
RCBO
- Differential current rating
0.03 A
- Dim
(W x H x D) 105 x 93 x 69 mm
- Content
1 pc(s)
- Model
RCD (all types of current)
- Switch-off capacity
6 kA
- Width
105 mm
- Height
93 mm
- Depth
69 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2317898 ABB 2CSR254101R1167 RCBO RCD (all types of current) 0.03 A
User & Safety Instructions
User & Safety Instructions 2317898 ABB 2CSR254101R1167 RCBO RCD (all types of current) 0.03 A
Description
FI/LS combinations (RCBOs) offer personal and property protection as well as protection against electrically ignited fires according to DIN VDE 0100-410 and DIN VDE 0100-530. They ensure protection of 1P+N, 2P, 3P+N or 4P circuits against overload and short-circuit currents, protection for sinusoidal alternating currents and pulsating currents with smooth DC fault current of up to 6 mA against earth. As well as fault protection (protection against indirect contact), additional protection (with IΔn ≤ 30 mA) and fire protection (with I∆n ≤ 300 mA). They comply with the product standard IEC/EN 61009-1 (VDE 0664-20). Applications include domestic, commercial and industrial applications. The extensive range of accessories offers you everything was needed for your installation tasks. Numerous approvals make the DS200 fit for worldwide use. Rated switching capacity ICN = 6,000 A according to IEC/EN 61009-1 (VDE 0664-20) for RCDs (residual current protective devices) in residential and similar applications, ICU = 10 kA according to IEC/EN 60947-2 (VDE 0660-101) for MCBs (LS) in industrial applications. RCBO DS200 type A is protected from 2-/4-pole (LS), switching from 2-/4-pole.
