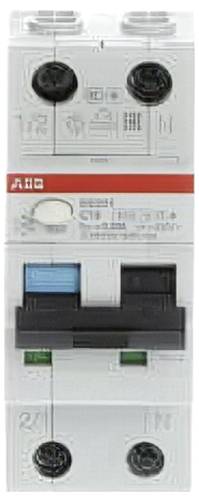

ABB 2CSR255180R1164 RCBO 16 A 0.03 A 240 V
EAN:
Part number:
Item no:
Product type
RCBO
Number of pins
2
Release characteristics
C
Differential current rating
0.03 A
Nominal current - rounded value
16 A
Technical specifications
- Product type
RCBO
- Number of pins
2
- Release characteristics
C
- Differential current rating
0.03 A
- Factory colour
White
- Dim
(L x W x H) 69 x 35 x 85 mm
- Content
1 pc(s)
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Switch-off capacity
6 kA
- Operating voltage
230 V
- Nominal voltage
240 V
- Width
35 mm
- Height
85 mm
- Length
69 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3789672 ABB 2CSR255180R1164 RCBO 16 A 0.03 A 240 V
Description
FI/LS switches (RCBOs) provide personal protection and property protection as well as protection against electrically ignited fires according to DIN VDE 0100-410 and DIN VDE 0100-530. They ensure protection of single-phase circuits against overload and short-circuit currents, protection for sinusoidal AC currents and pulsating currents with a smooth DC-fault share of up to 6 mA against earth. Fault protection (protection in case of indirect contact), additional protection (with I?n = 30 mA) and fire protection (with I?n = 300 mA). It meets the product standards IEC/EN 61009-1 (VDE 0664-20), IEC/EN 61009-2-1 (VDE 0664-21). They are used in domestic, commercial and industrial applications. The extensive range of accessories offers you everything that you need WAS for your installation tasks. Numerous approvals make the DS201 ready for worldwide use. Rated switching capacity according to IEC/EN 61009 ICN = 6 kA. RCBO DS201 A type A is 1-pin protected (LS), 2-pin switching.
This text is machine translated.
This text is machine translated.
Features
- Residual current type: Type A
- Operating voltage of test device (Ut): (Minimum) 170 V, (Maximum) 264 V.
- Insulation test voltage 2 kV
- Rated short circuit breaking capacity (ICU): 10 kA
- Rated switching capacity (IΔm) EN 61009-1 6000 A, IEC 61009-1 6000 A.
- Rated breaking capacity In, rated fault switching capacity IΔm (ICS): 7.5 kA
- Feed: Any
- Switching position indicator: Red ON / green OFF
- Energy limitation class 3
- Electrical life: 10000 cycles
- Mechanical load carrying capacity 20000 cycles
- Number of protected poles: 1
- Number of pins: 1P+N
- Number of module distances per DIN rail: 2
- Fault indication: Blue mark on the shift lever
- FI time delay: Instantaneous
- Position of the N conductor: Right
- Tightening torque 2.8 N
- m
- Accessory type: Auxiliary contact, signal/auxiliary contact, auxiliary contact that can be mounted on the bottom, open-circuit release, under-voltage release, Motor-/remote drive
- Housing type: Insulating material group I - II, RAL 7035
- Type screw clamp: Interference-proof, double-directed cylinder lift connection
- Switch handle material: Insulation class II, black, lead-sealable
- Accessories can be attached: Yes
- Connectivity:
- Phase rail 10 ... 10 mm²
- multiwired 0.75 ... 25 mm²
- Flexible with wire-end sleeve 0.75 ... 16 mm²
- flexible 0.75 ... 16 mm²
- Rated cross-section: (1 - rigid) 0.75 … 25 mm², (4 - multi-wired) 0.75 … 16 mm²
- Stripped length: 12 mm
- Type of connection: Screw terminal
- Control element version: Switch
