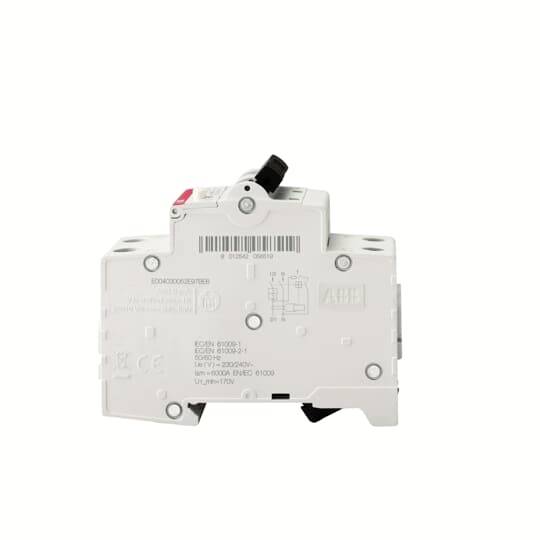

ABB 2CSR275580R1165 RCBO for mixed frequency bands 16 A 0.03 A
EAN:
Part number:
Item no:
Product type
RCBO
Number of pins
2
Release characteristics
B
Differential current rating
0.03 A
Nominal current - rounded value
16 A
Datasheet (PDF)
Technical specifications
- Nominal voltage (details)
240 V
- Product type
RCBO
- Number of pins
2
- Release characteristics
B
- Differential current rating
0.03 A
- Dim
(L x W x H) 150 cm x 50 mm x 100 mm
- Content
1 pc(s)
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Model
for mixed frequency bands
- Switch-off capacity
10 kA
- Width
50 mm
- Height
100 mm
- Length
150 cm
- Depth
69 mm
AC
69 mm
16 A
240 V
B
500 V
0.03 A
F
0 kA
3
3
2
2
50/60 Hz
IP20
1
TRUE
15 kA
FALSE
-25-55 °C
FALSE
2
FALSE
4 kV
10 kA
Undelayed
10 kA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3119267 ABB 2CSR275580R1165 RCBO for mixed frequency bands 16 A 0.03 A
Description
FI/LS switches (RCBOs) provide personal protection and property protection as well as protection against electrically ignited fires according to DIN VDE 0100-410 and DIN VDE 0100-530. They ensure protection of single-phase circuits against overload and short-circuit currents, protection for sinusoidal AC currents and pulsating currents with a smooth DC-fault share of up to 10 mA against earth. Fault protection (protection in case of indirect contact), additional protection and fire protection. It meets product standards IEC/EN 61009-1 (VDE 0664-20), IEC/EN 61009-2-1 (VDE 0664-21), DIN EN 62423 (VDE 0664-40).
They are used in domestic, commercial and industrial applications. The extensive range of accessories offers you everything that you need WAS for your installation tasks.
Optimal compromise between safety and operating continuity, thanks to the immunity with surge current stability (surge current form 8/20 μs) = 3,000 A against unwanted triggering and 10 ms short delay. The DS201 MF are mix frequency sensitive specially for single-phase electronic consumers with frequency converters, with a frequency range of 1 - 1,000 Hz for detecting the residual current.
Rated switching capacity according to IEC/EN 61009 ICN = 10 kA.
RCBO DS201 MF Type F is 1-pin protected (LS), 2-pin switching.
