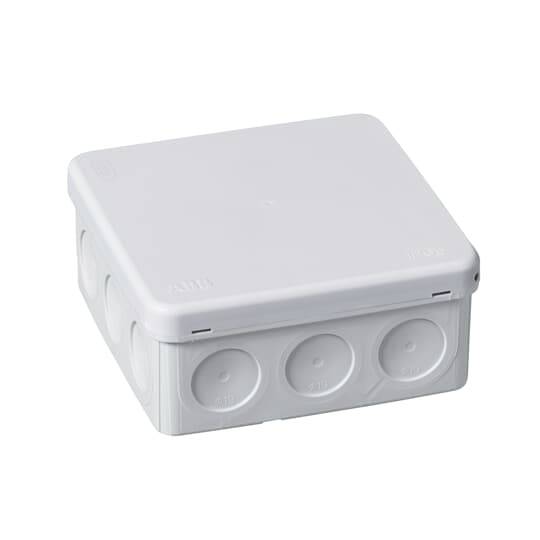

ABB 2TKA140003G1 Cable splitter (L x W x H) 104 x 104 x 104 mm Grey IP65 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Cable splitter
- Factory colour
Grey
IP65
- Permanent temperature resistance
-25 - +60 °C
- Dim
(L x W x H) 104 x 104 x 104 mm
- Type
Blind cover
- Content
1 pc(s)
- Material
Plastic
- Width
104 mm
- Height
104 mm
- Length
104 mm
Universal
Grey
104 mm
TRUE
104 mm
Square
Untreated
None
500 V
104 mm
FALSE
None
-25-60 °C
Plastic
12
FALSE
Snapped on
6 mm²
FALSE
TRUE
IP65
Other
TRUE
None
FALSE
Seal membrane
None
Blind cover
FALSE
FALSE
FALSE
Other
FALSE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3119391 ABB 2TKA140003G1 Cable splitter (L x W x H) 104 x 104 x 104 mm Grey IP65 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3119391 ABB 2TKA140003G1 Cable splitter (L x W x H) 104 x 104 x 104 mm Grey IP65 1 pc(s)
Description
The connection and junction boxes of ABB are manufactured from a two-component system. They have ten easy to punch through on the side and two additional membrane cable entries on the bottom for cables up to a thickness of 17 mm. The membrane reliably seals the cable entries. The boxes are locked securely with a locking lid. To open it, insert a screwdriver into the opening slots. No screws are required. The mounting temperature is -15°C to +60°C. Advantages: 12 self-sealing cable entries, extremely stable housing (PP), permanently elastic membrane inlet (SEBS), optimum price/performance ratio, maximum possible connection area, protection class IP55, certified to EN60670-21:2007 and EN60670-22:2006, UV-resistant and halogen-free, filament testing to IEC 659-2-11.
