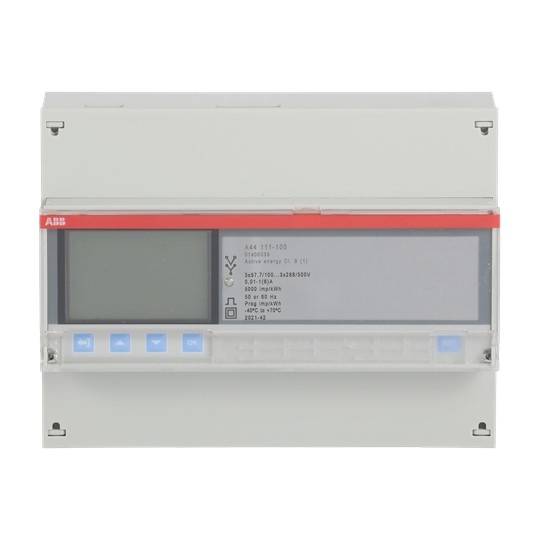

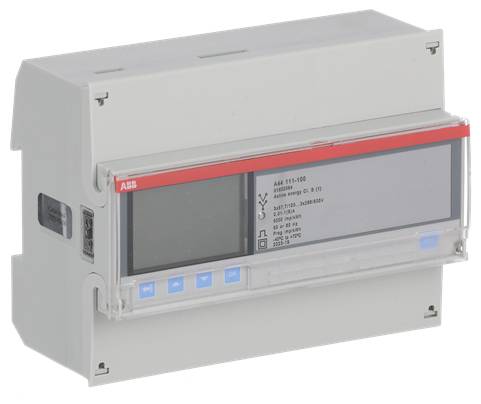

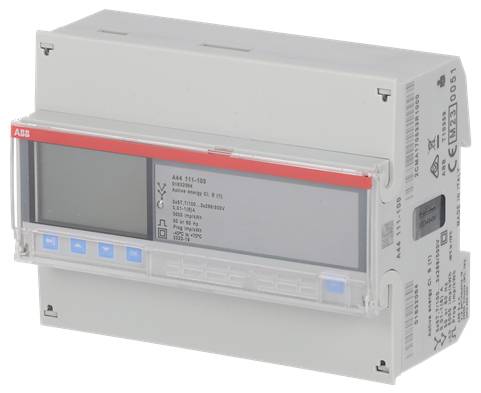

ABB A44 111-100 2CMA170533R1000 Converter meter Digital 1 pc(s)
EAN:
Part number:
Item no:
Product type
Converter meter
Display
Digital
Calibration
Calibrated
Counter type
Electronic measuring transducer
Operating voltage
57.7 V - 288 V;100 V - 500 V
Technical specifications
- Counter type
Electronic measuring transducer
- Product type
Converter meter
- Display
Digital
- Calibration
Calibrated
- Operating voltage
57.7 V - 288 V;100 V - 500 V
- Dim
(L x W x H) 65 x 123 x 26.5 mm
- Weight
443.00
- Type
With return lock and lock code
- Self-consumption
0.801 W
- Frequency
50 Hz - 60 Hz
- Accuracy class
B
- Reading type
Active power
- Width
123 mm
- Height
26.5 mm
- Length
65 mm
- Current (max.)
6 A
- Current range
6 A (max)
- Type
A44 111-100
- Nominal current
6 A
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3785342 ABB A44 111-100 2CMA170533R1000 Converter meter Digital 1 pc(s)
Information
Information 3785342 ABB A44 111-100 2CMA170533R1000 Converter meter Digital 1 pc(s)
Description
Three-phase meter for measuring a three-conductor or four-conductor three-phase current supply via a converter connection CTVT (transformer ratio for current and voltage configurable) up to a maximum of 6 A. The following values are output via a white backlit display with up to 7 digits: Active energy (class 1), power, currents, voltages (L-L, L-N), Frequency, and Power factor, both per phase and total. Communication can take place via the infrared interface for connecting a KNX module. The energy meter has one output. This can be used optionally as pulse output for output of active energy or as alarm output. Here, up to 25 alarm values (thresholds with time delay) can be set. Meter is calibrated according to MID and approved according to IEC. The installed width is 7 DIN modules.
