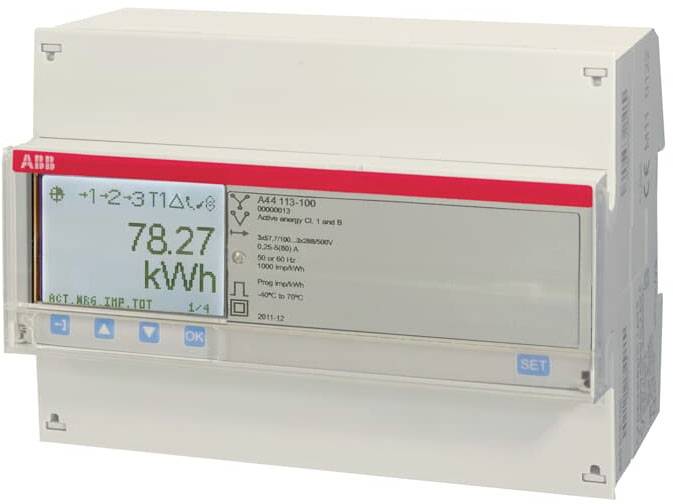

ABB A44 113-100 2CMA100249R1000 Electricity meter (3-phase) Digital MID-approved: Yes 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electricity meter (3-phase)
Display
Digital
Calibration
Calibrated
Counter type
electronic
Display
Digital
Datasheet (PDF)
Technical specifications
- Counter type
electronic
- Product type
Electricity meter (3-phase)
- Display
Digital
- Calibration
Calibrated
- Display
Digital
- MID-approved
Yes
- Reading type
Active energy
- Current (max.)
6 A
- Current range
6 A (max)
- Type
A44 113-100
- Effective current range
6 A
DRA (DIN-rail adapter)
123
26.5 mm
65 mm
0.801 W
50-60 MHz
7
IP20
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2319082 ABB A44 113-100 2CMA100249R1000 Electricity meter (3-phase) Digital MID-approved: Yes 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2319082 ABB A44 113-100 2CMA100249R1000 Electricity meter (3-phase) Digital MID-approved: Yes 1 pc(s)
Description
Three-phase meter for measuring a three-wire or four-wire three-phase current network via a CTVT converter connection (converter ratio for current and voltage configurable) up to a maximum of 6 A. The following values are output via a white backlit display with up to 7 digits: Active energy (class 1), power, currents, voltages (L-L; L-N), frequency, and power factor, both per phase and total. Communication can be via the integrated M-Bus interface or via the infrared interface for connecting a KNX module. The energy meter has an output. This can be used as pulse output for the output of active energy or as alarm output. Up to 25 alarm values (threshold values with time delay) can be set here. Counter is calibrated according to MID and approved according to IEC. The installation width is 7 DIN modules.
