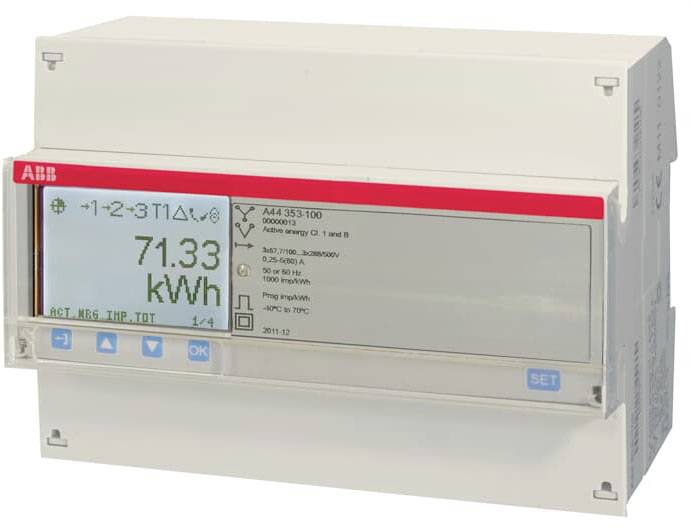

ABB A44 353-100 2CMA170538R1000 Electricity meter (3-phase) 1 pc(s)

Three-phase meter for measuring a three-wire or four-wire three-phase current network via a CTVT converter connection (converter ratio for current and voltage configurable) up to a maximum of 6 A. The following values are output via a white backlit display with up to 7 digits: Active energy (class 0.5) and reactive energy (class 2) for import and export, power, currents, voltages (L-L; L-N), frequency, cos phi, power factor and apparent power (per phase and total). Communication can be via the integrated M-bus or via the infrared interface. The energy meter has 2 permanently configured inputs and outputs. The output can be used as pulse output or as alarm output (up to 25 alarm values). The inputs are used to control the tariffs or to count external impulses.The resettable intermediate counter allows the measurement of individual intervals. In addition, the counter records up to 4 tariffs. Counter is calibrated according to MID and approved according to IEC. The installation width is 7 DIN modules.
