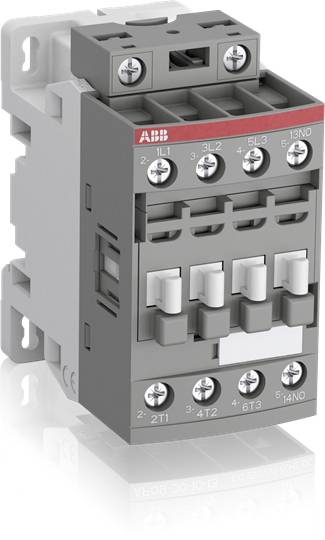

ABB AF09-30-01-13 Contactor 3 makers, 1 breaker 4 kW 1 pc(s)
EAN:
Part number:
Item no:
Product type
Contactor
Power
4 kW
Connection
Screws
Type
AF09-30-01-13
Contact type
3 makers
1 breaker
Datasheet (PDF)
Number
Total (€ 32.76 / piece)
€ 32.76
plus VAT.
Only 8 Piece(s) available
Technical specifications
- Product type
Contactor
- Type
AF09-30-01-13
- Contact type
3 makers
1 breaker
- Control voltage (max.)
100 V AC
100 V DC
- Control voltage range
100, 100 V AC, V DC (max)
- Permanent current (max.)
25 A
4 kW
- Connection
Screws
- Content
1 pc(s)
45
86 mm
77 mm
FALSE
4 kW
3
0
0
1
9 A
25 A
100-250 V
100-250 V
100-250 V
Screw connection
690-690 V
690-690 V
AC/DC
1.491
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3105194 ABB AF09-30-01-13 Contactor 3 makers, 1 breaker 4 kW 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3105194 ABB AF09-30-01-13 Contactor 3 makers, 1 breaker 4 kW 1 pc(s)
Description
The 3-pin AF09 contactors are for the compact series with AC/DC control and very wide coil voltage ranges. They switch power circuits with motors, slightly inductive or non-inductive loads. Only 4 coils cover control voltages from 20...500 VDC to 24...500 VAC. They have a built-in surge protector and do not require any additional quenching circuits. All integrated NC auxiliary contacts that can be installed later are designed as mirror contacts in accordance with IEC60947-5-1 Annex L. Other accessories such as timers, wiring aids and locking links, etc. complete the range.
